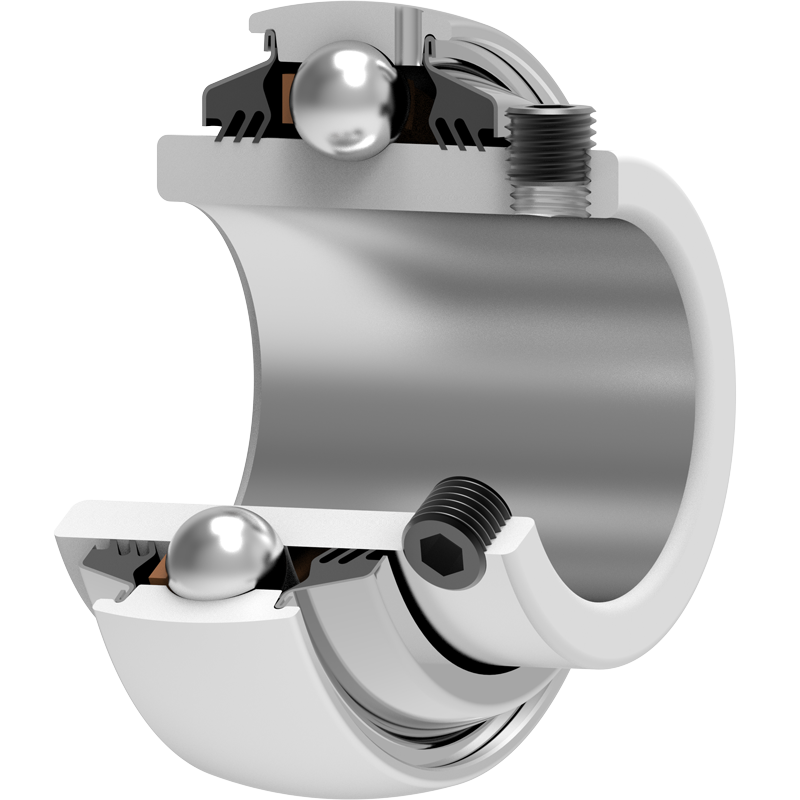

LE 205 2T FKL

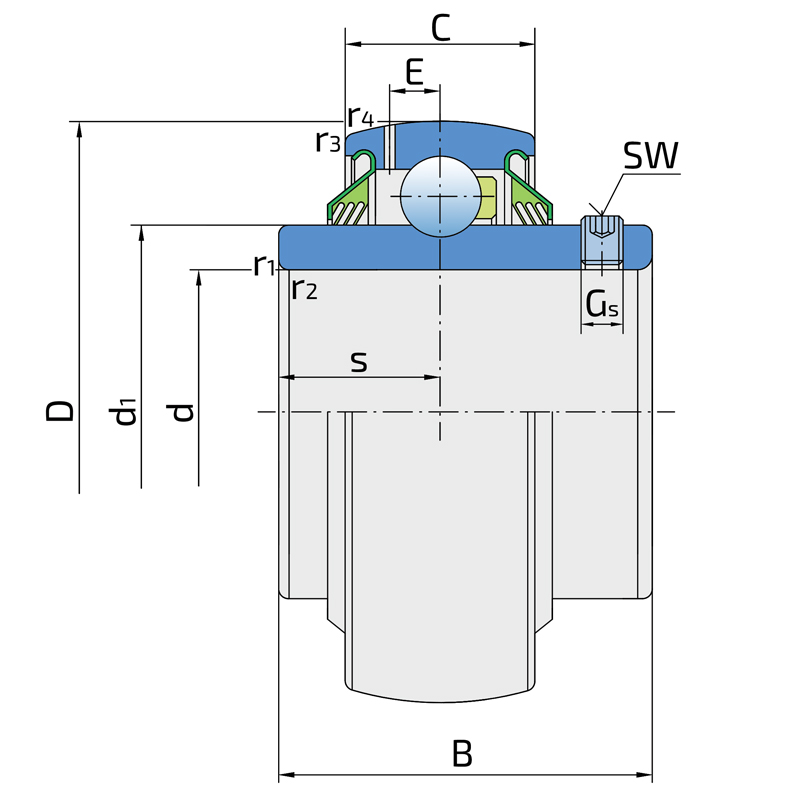

Technical datasheet:

d	Bore diameter	25
D	Outside diameter	52
B	Width inner ring	34.1
C	Width outer ring	15
s	Distance from inner ring side face to raceway centre	14.3
d1	Outer diameter inner ring	33.6
E	Distance from raceway centre to the hole for lubrication	4.3
Gs	Set screw	M6x0.75
sw	Hexagonal key size for set screw	3
r1,2	Inner ring Chamfer dimension	0.6
r3,4	Outside ring Chamfer dimension	0.6
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.335
kg	Mass	0.17

Interchange:

OEM	Manufacturer	Comments
GYE25KTTB	INA
M-UC205D1LLJ	NTN
T1025-25G	RHP
UC205G2L3	SNR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
