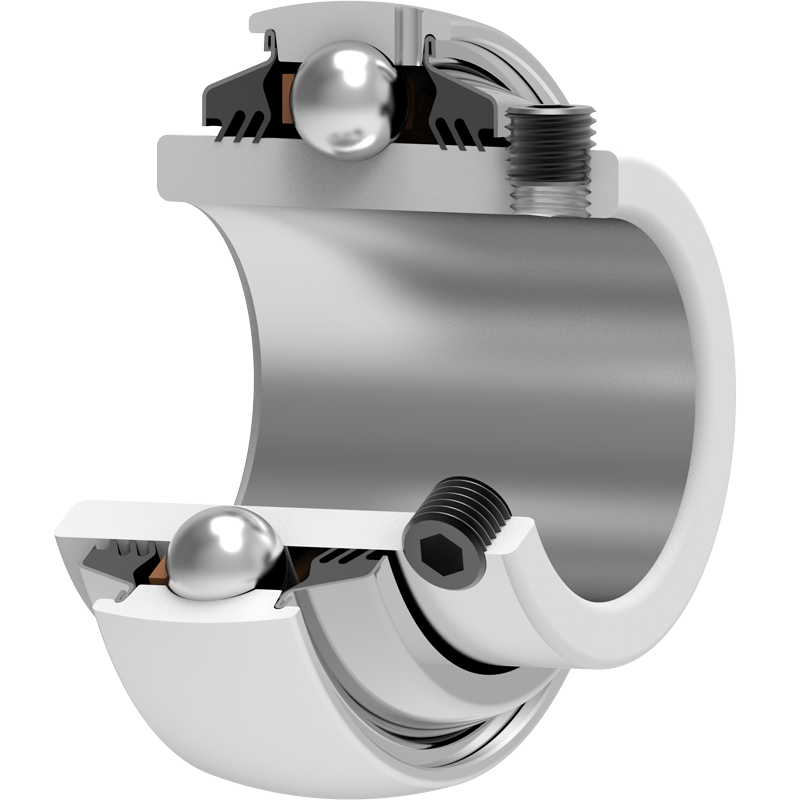

LE 206 2T FKL

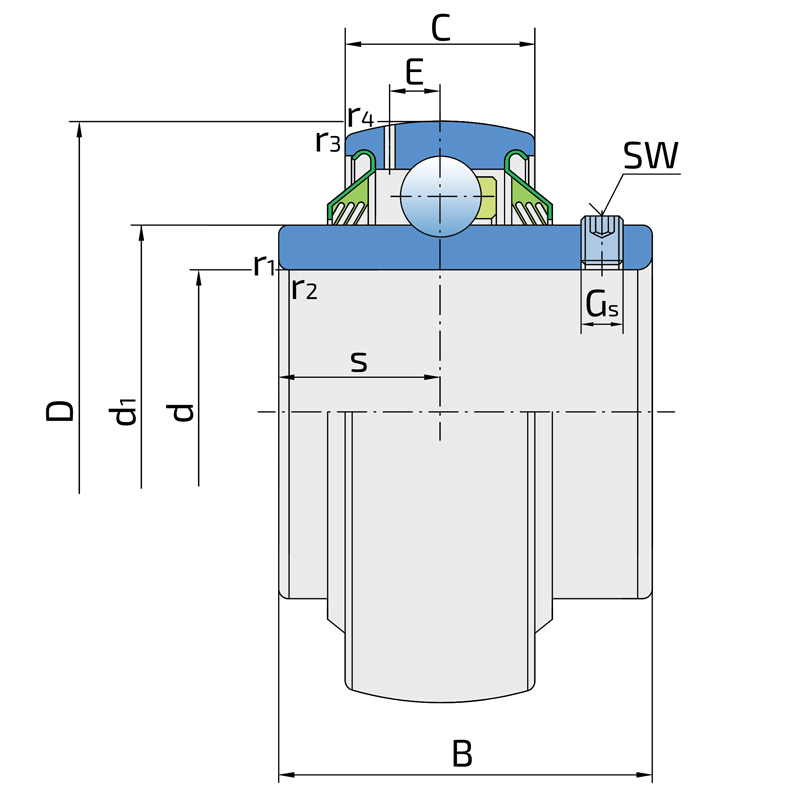

Technical datasheet:

d	Bore diameter	30
D	Outside diameter	62
B	Width inner ring	38.1
C	Width outer ring	18
s	Distance from inner ring side face to raceway centre	15.9
d1	Outer diameter inner ring	39.7
E	Distance from raceway centre to the hole for lubrication	5.1
Gs	Set screw	M6x0.75
sw	Hexagonal key size for set screw	3
r1,2	Inner ring Chamfer dimension	0.6
r3,4	Outside ring Chamfer dimension	0.6
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.475
kg	Mass	0.28

Interchange:

OEM	Manufacturer	Comments
GYE30KTTB	INA
M-UC206D1LLJ	NTN
T1030-30G	RHP
UC206G2L3	SNR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
