LE 206 TDT FKL

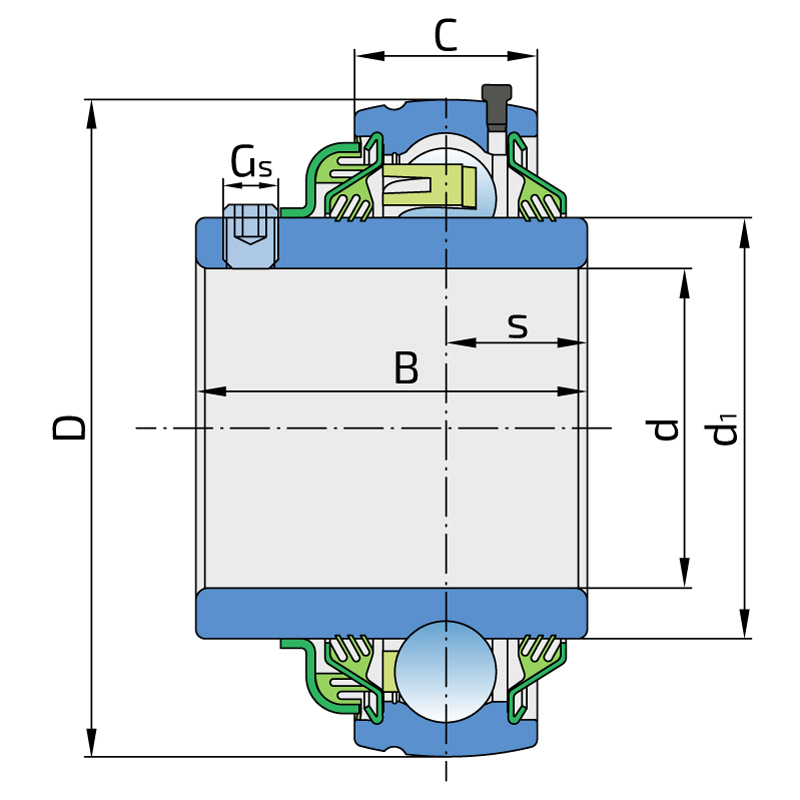

Technical datasheet:

d	Bore diameter	30
D	Outside diameter	62
B	Width inner ring	38.1
C	Width outer ring	18
s	Distance from inner ring side face to raceway centre	14
d1	Outer diameter inner ring	39.7
Gs	Set screw	M6x0.75
kg	Mass	0.305
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.3
Pu	Fatigue load limit	0.475

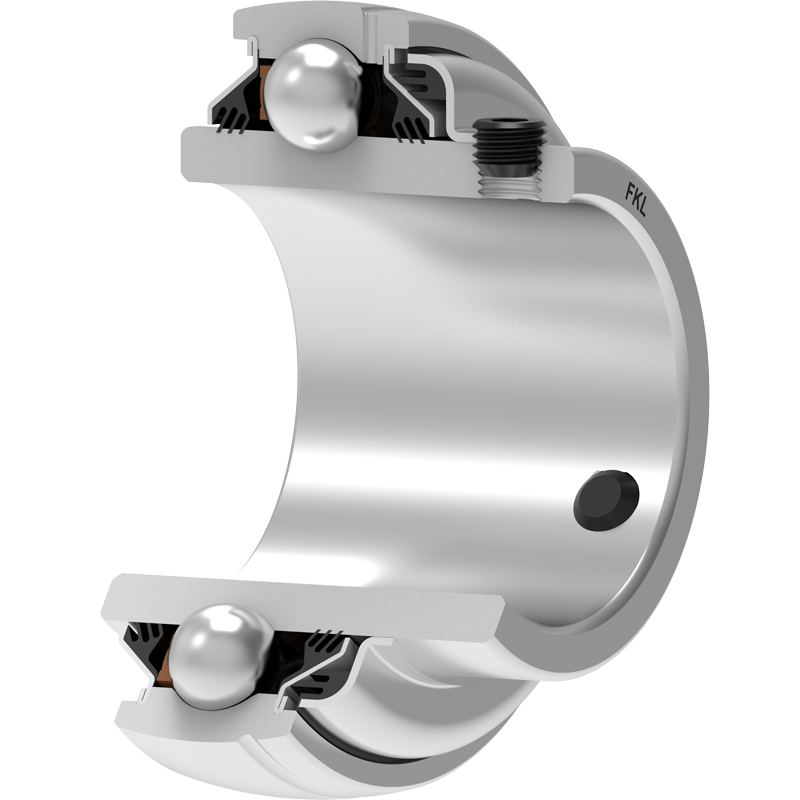

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
