LE 207 2T FKL

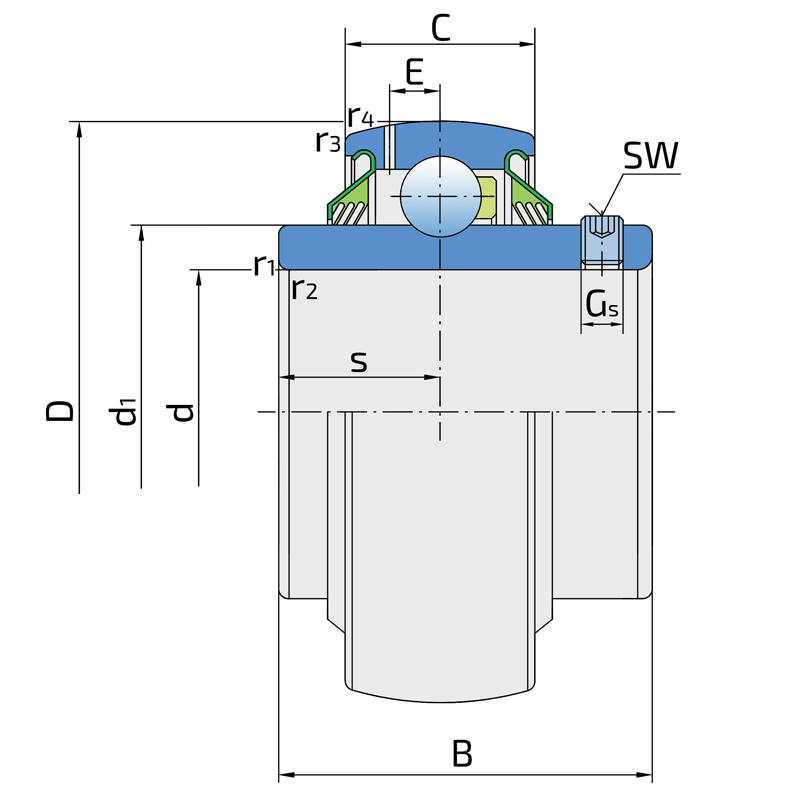

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	72
B	Width inner ring	42.9
C	Width outer ring	19
s	Distance from inner ring side face to raceway centre	17.5
d1	Outer diameter inner ring	46.1
E	Distance from raceway centre to the hole for lubrication	5.6
Gs	Set screw	M6x0.75
sw	Hexagonal key size for set screw	3
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.655
kg	Mass	0.41

Interchange:

OEM	Manufacturer	Comments
GYE35KTT-B	INA
M-UC207D1LLJ	NTN
T1035-35G	RHP
UC207G2L3	SNR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
