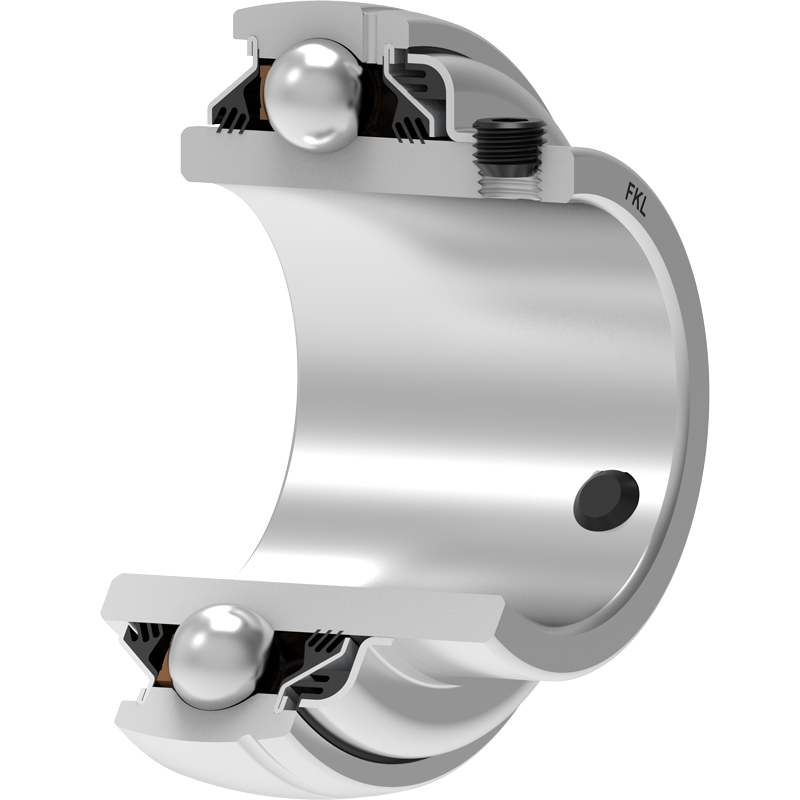

LE 207 TDT FKL

Technical datasheet:

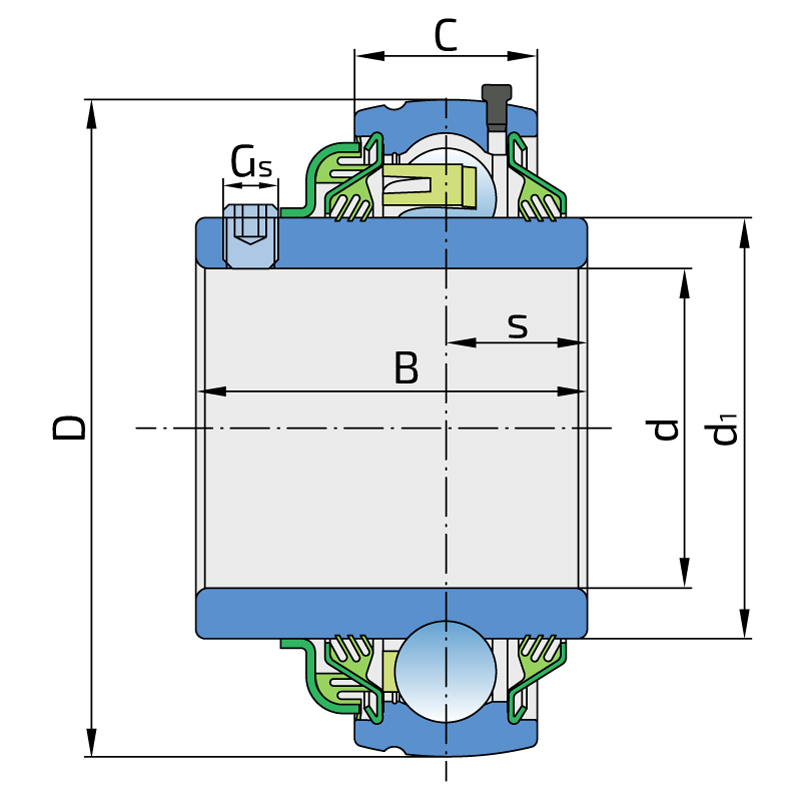

d	Bore diameter	35
D	Outside diameter	72
B	Width inner ring	42.9
C	Width outer ring	20
s	Distance from inner ring side face to raceway centre	15.5
d1	Outer diameter inner ring	46.1
Gs	Set screw	M6x0.75
kg	Mass	0.47
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.643

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
