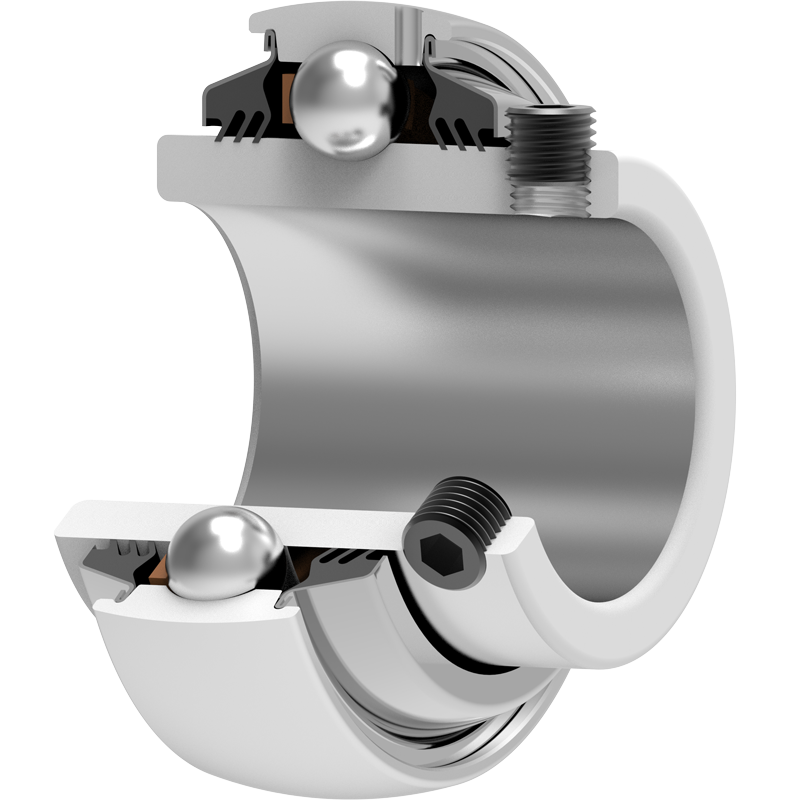

LE 208 2T FKL

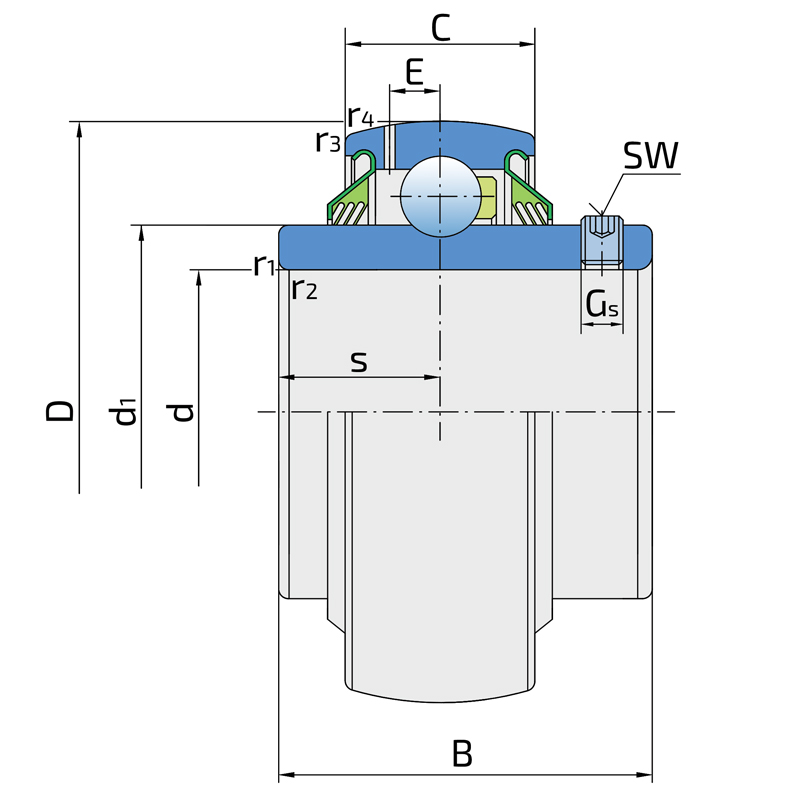

Technical datasheet:

d	Bore diameter	40
D	Outside diameter	80
B	Width inner ring	49.2
C	Width outer ring	21
s	Distance from inner ring side face to raceway centre	19
d1	Outer diameter inner ring	51.8
E	Distance from raceway centre to the hole for lubrication	6.1
Gs	Set screw	M8x1
sw	Hexagonal key size for set screw	4
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.8
kg	Mass	0.55

Interchange:

OEM	Manufacturer	Comments
GYE40KTTB	INA
M-UC208D1LLJ	NTN
T1040-40G	RHP
UC208G2L3	SNR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
