LE 208 TDT FKL

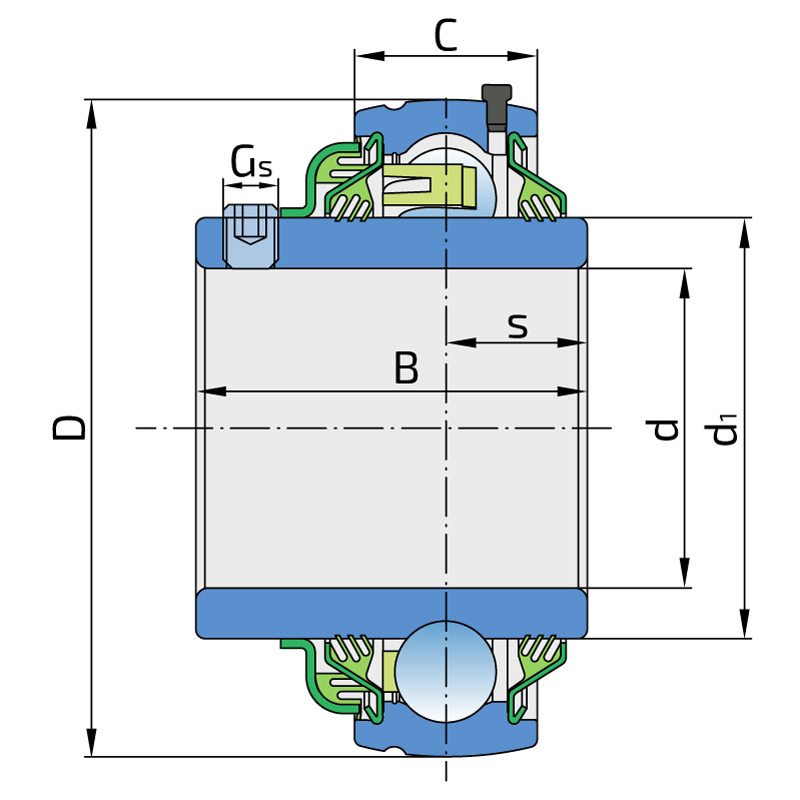

Technical datasheet:

d	Bore diameter	40
D	Outside diameter	80
B	Width inner ring	49.2
C	Width outer ring	21
s	Distance from inner ring side face to raceway centre	18.3
d1	Outer diameter inner ring	51.8
Gs	Set screw	M8x1
kg	Mass	0.595
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.798

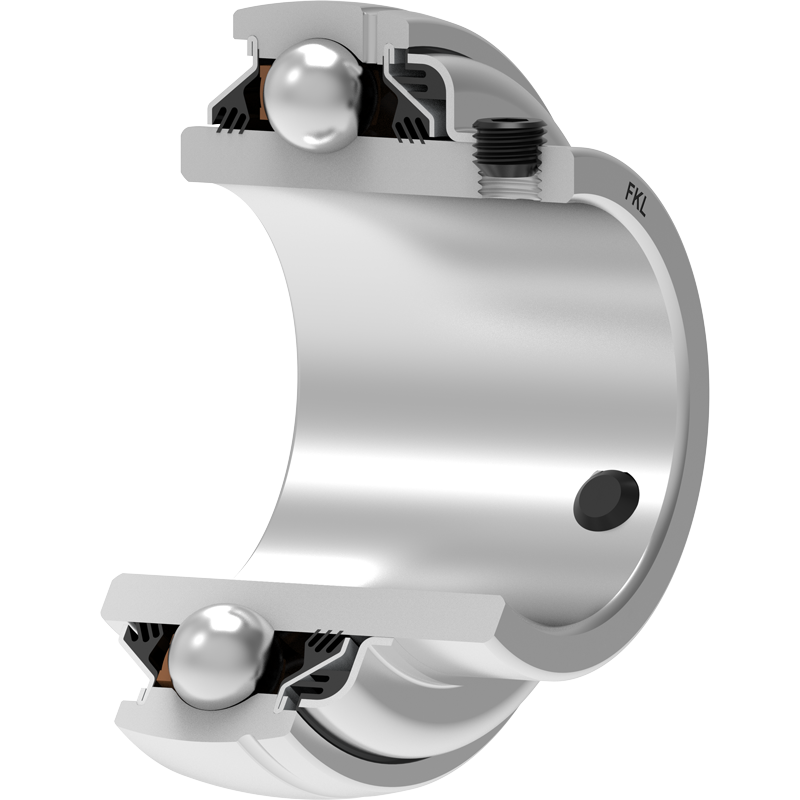

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
