LE 209 2T FKL

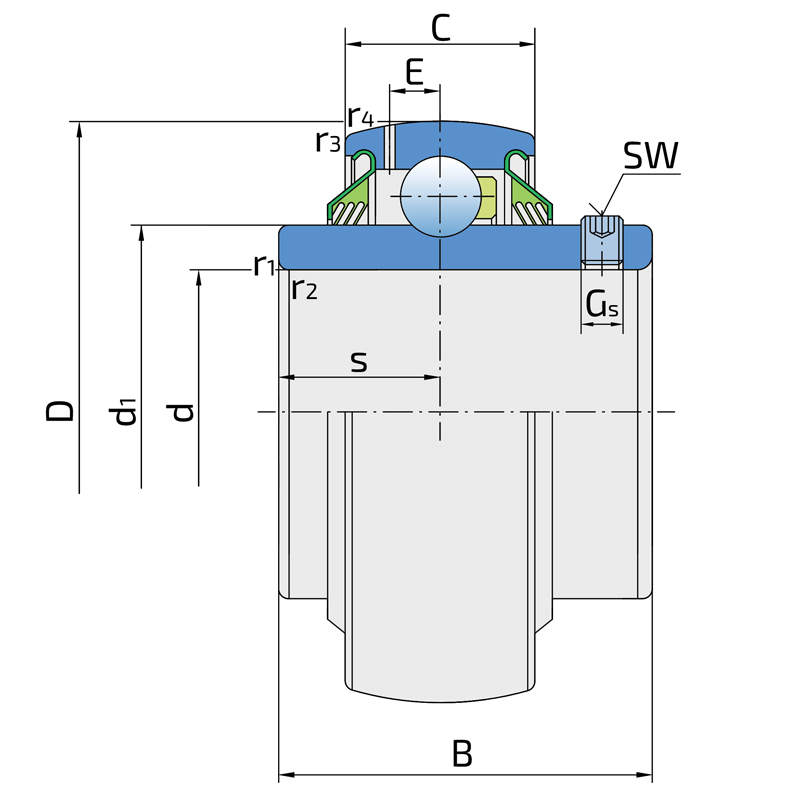

Technical datasheet:

d	Bore diameter	45
D	Outside diameter	85
B	Width inner ring	49.2
C	Width outer ring	22
s	Distance from inner ring side face to raceway centre	19
d1	Outer diameter inner ring	56.6
E	Distance from raceway centre to the hole for lubrication	6.1
Gs	Set screw	M8x1
sw	Hexagonal key size for set screw	4
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1.5
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.915
kg	Mass	0.6

Interchange:

OEM	Manufacturer	Comments
GYE45KTTB	INA
M-UC209D1LLJ	NTN
T1045-45G	RHP
UC209G2L3	SNR

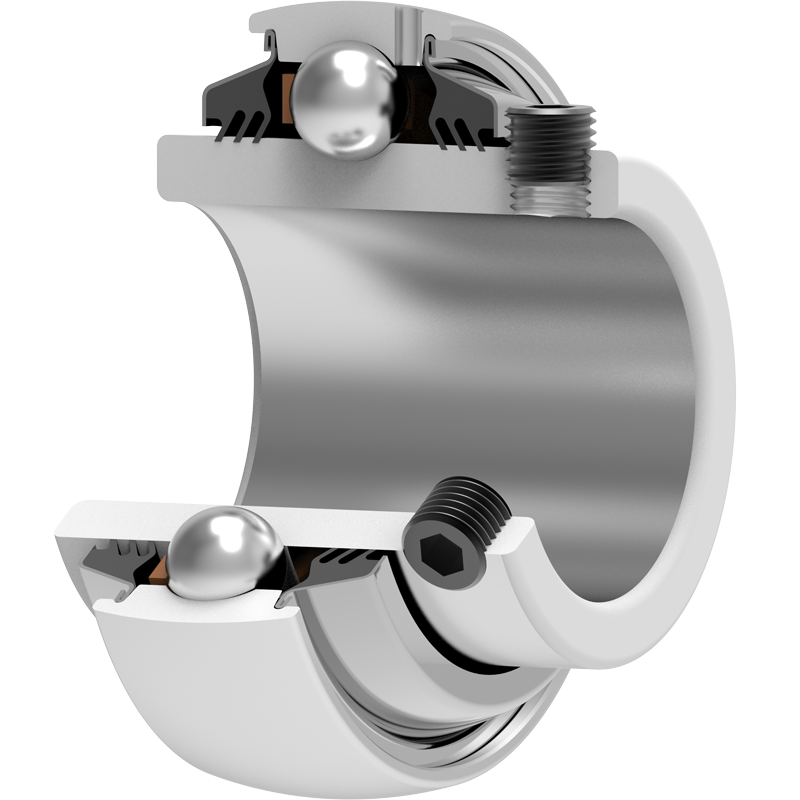

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
