LE 209 TDT FKL

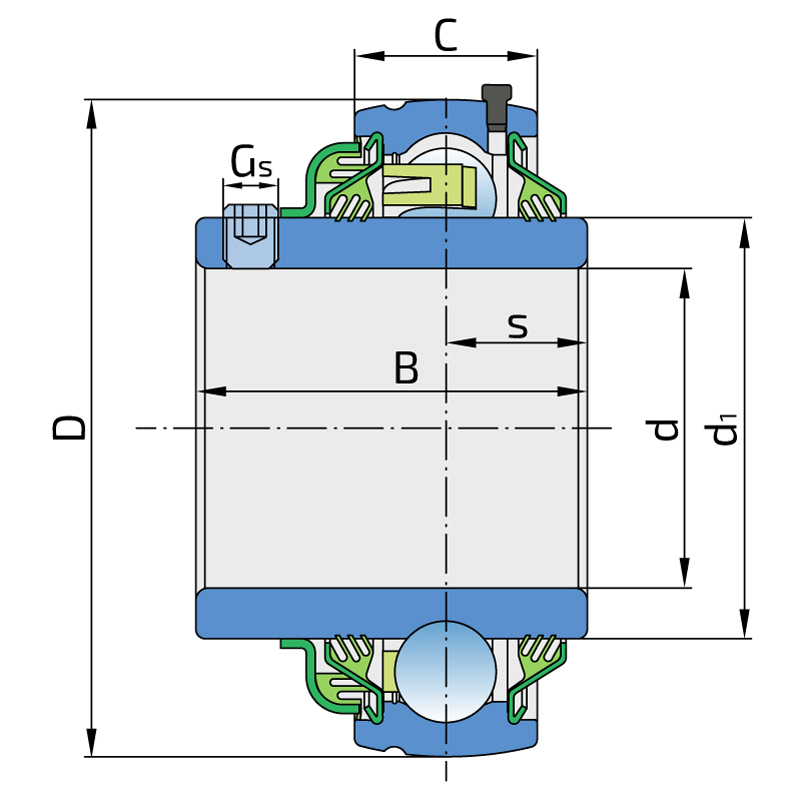

Technical datasheet:

d	Bore diameter	45
D	Outside diameter	85
B	Width inner ring	49.2
C	Width outer ring	22
s	Distance from inner ring side face to raceway centre	17.5
d1	Outer diameter inner ring	56.8
Gs	Set screw	M8x1
kg	Mass	0.655
Cdyn	Dynamic load rating	34.6
Co	Static load rating	20.4
Pu	Fatigue load limit	0.857

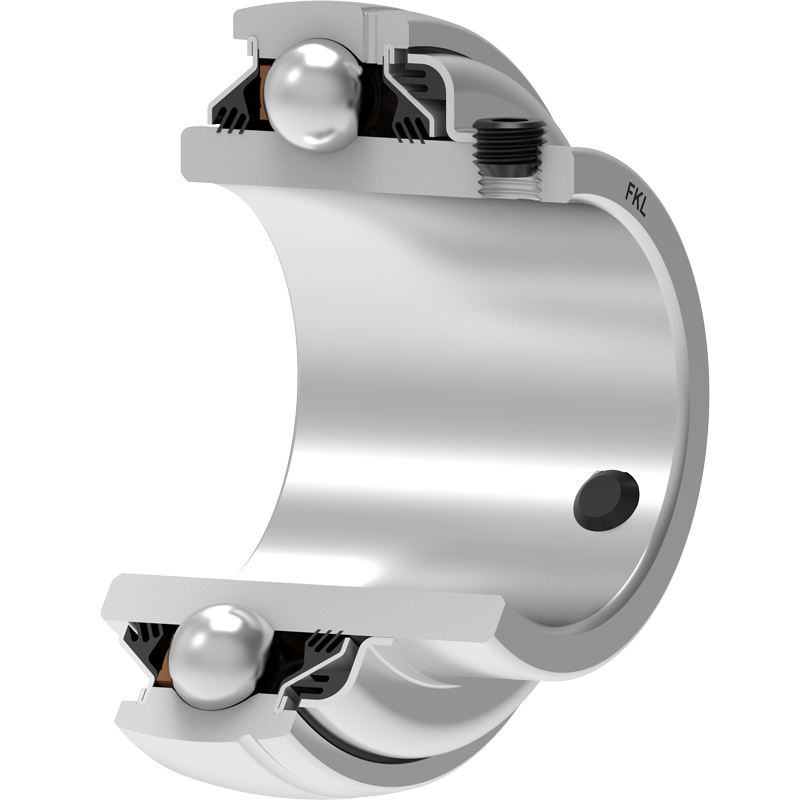

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
