LE 210 2TB FKL

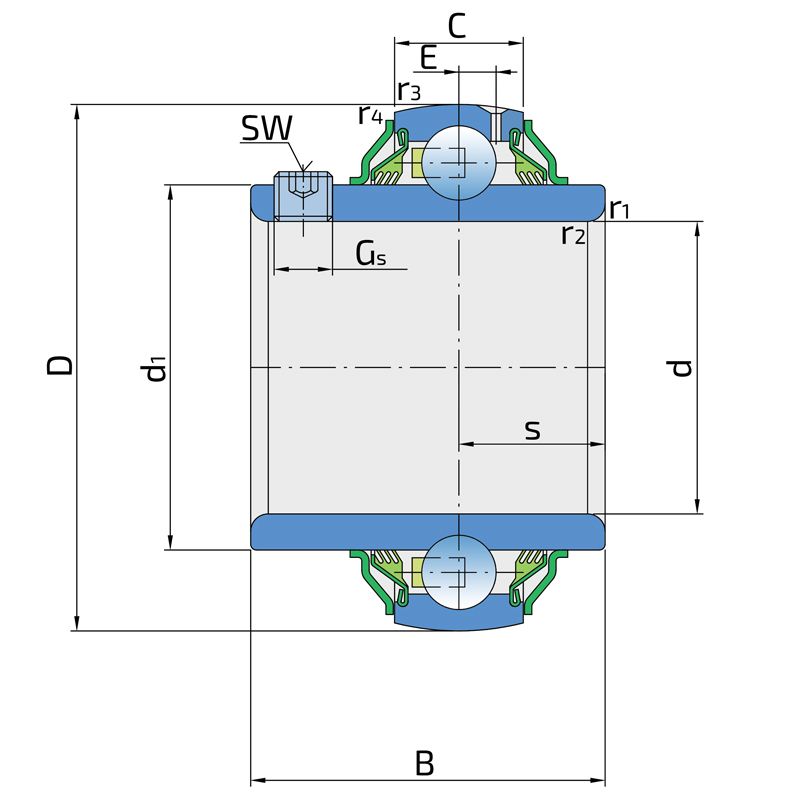

Technical datasheet:

d	Bore diameter	50
D	Outside diameter	90
B	Width inner ring	51.6
C	Width outer ring	22
s	Distance from inner ring side face to raceway centre	19
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.4
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1.5
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.98
kg	Mass	0.69

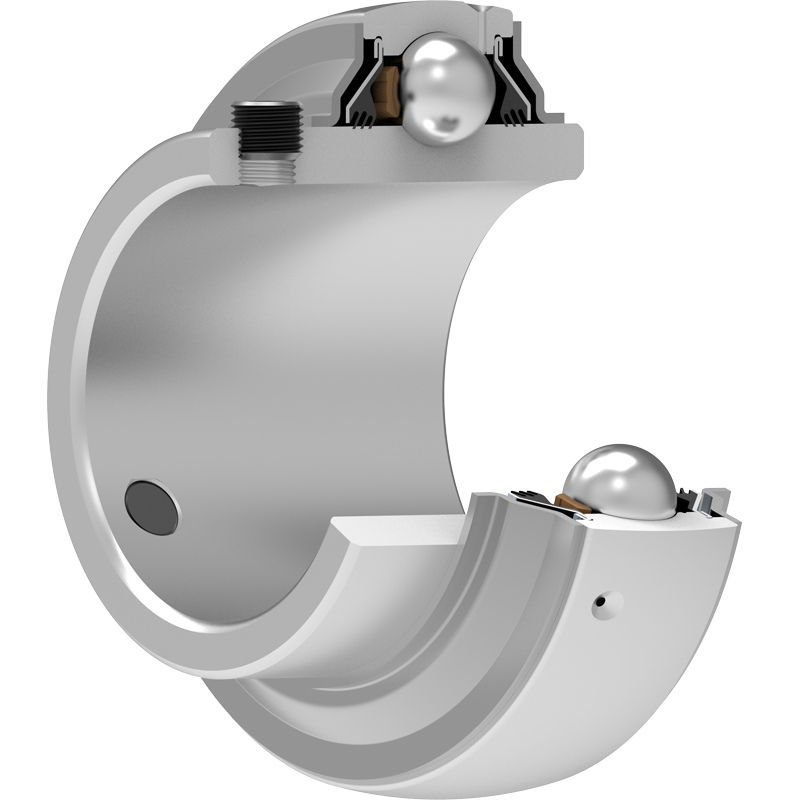

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
