LE 210 TDT FKL

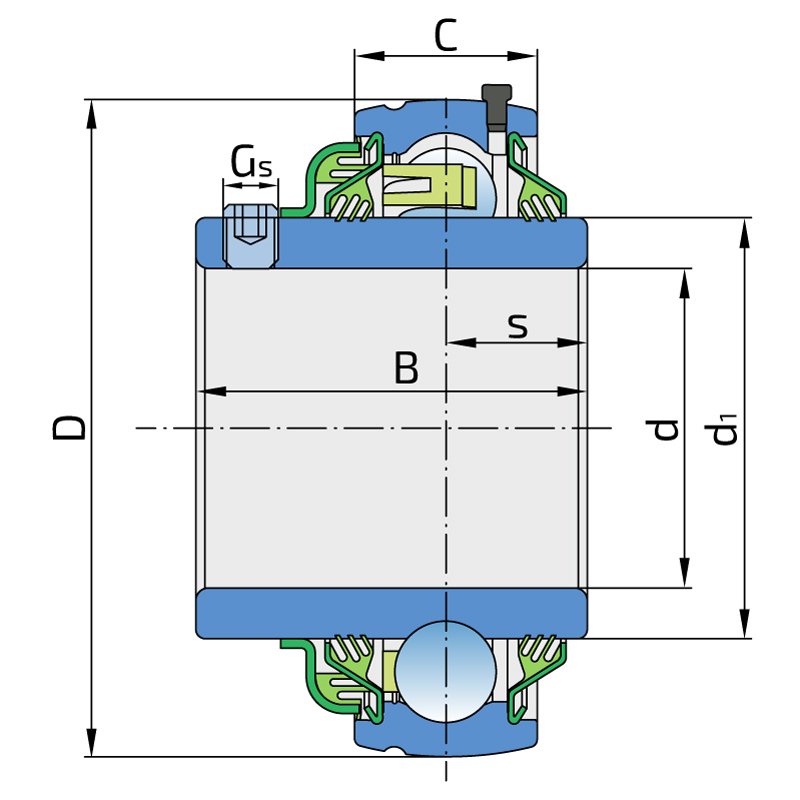

Technical datasheet:

d	Bore diameter	50
D	Outside diameter	90
B	Width inner ring	51.6
C	Width outer ring	24
s	Distance from inner ring side face to raceway centre	18.2
d1	Outer diameter inner ring	62.5
Gs	Set screw	M10x1
kg	Mass	0.789
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.974

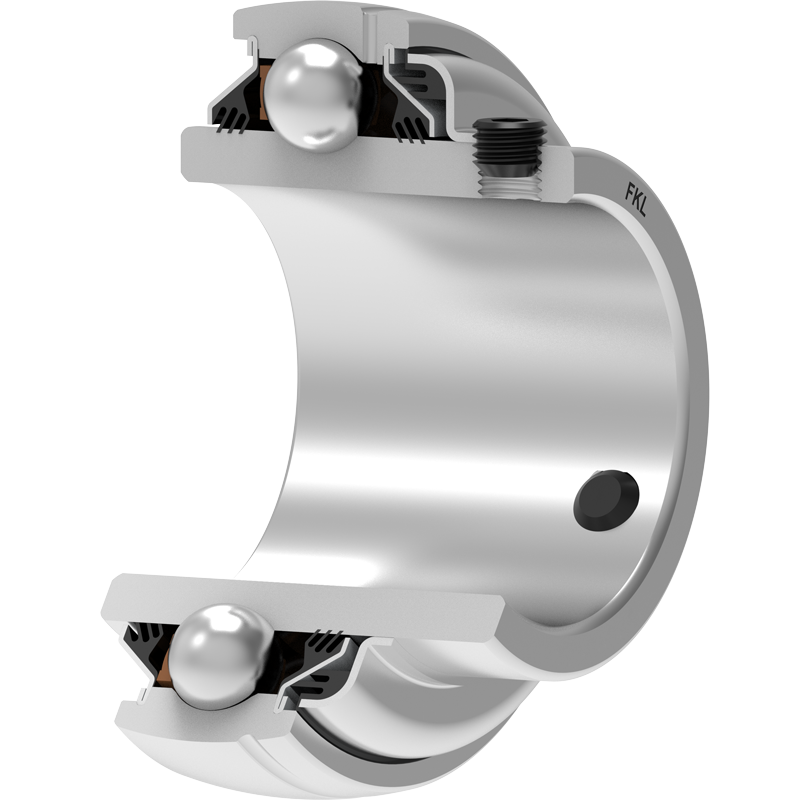

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
