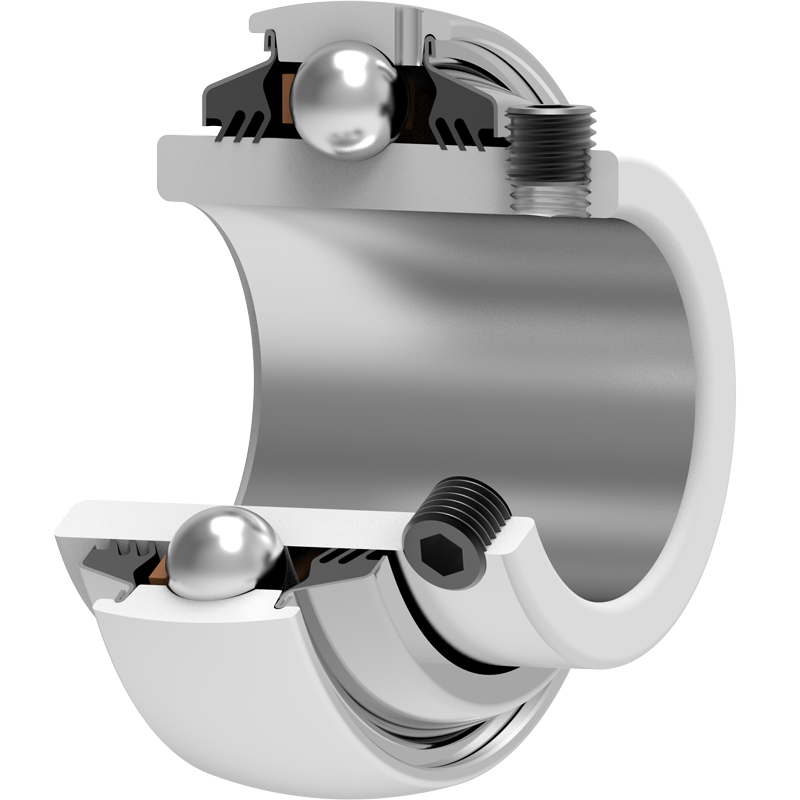

LE 211 2T FKL

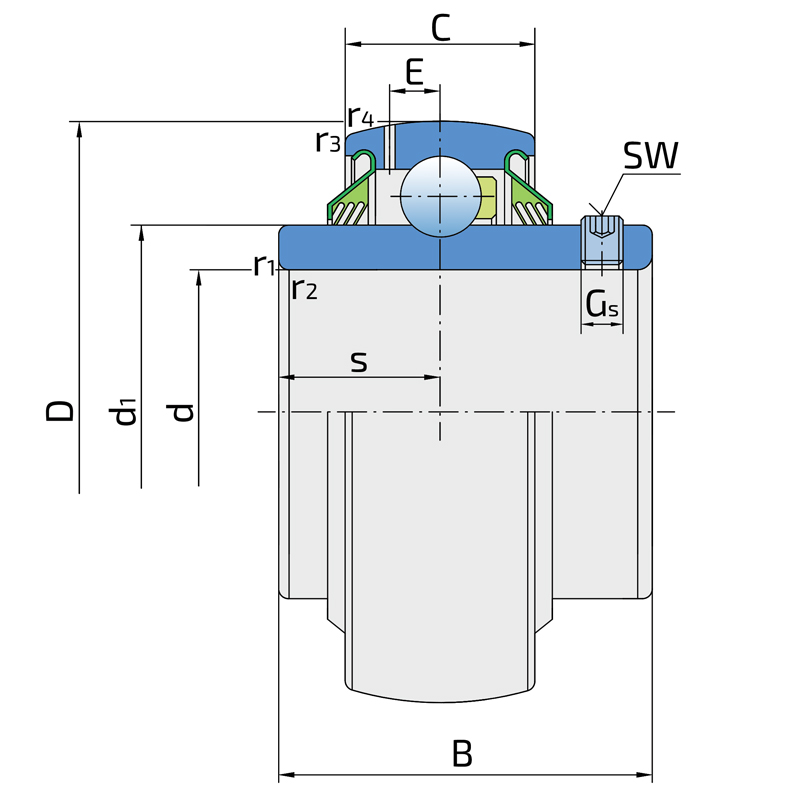

Technical datasheet:

d	Bore diameter	55
D	Outside diameter	100
B	Width inner ring	55.6
C	Width outer ring	25
s	Distance from inner ring side face to raceway centre	22.2
d1	Outer diameter inner ring	69.1
E	Distance from raceway centre to the hole for lubrication	7
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	2
Cdyn	Dynamic load rating	43.6
Co	Static load rating	29
Pu	Fatigue load limit	1.25
kg	Mass	0.94

Interchange:

OEM	Manufacturer	Comments
GYE55KTTB	INA
M-UC211D1LLJ	NTN
T1055-55G	RHP
UC211G2L3	SNR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
