LE 211 TDT FKL

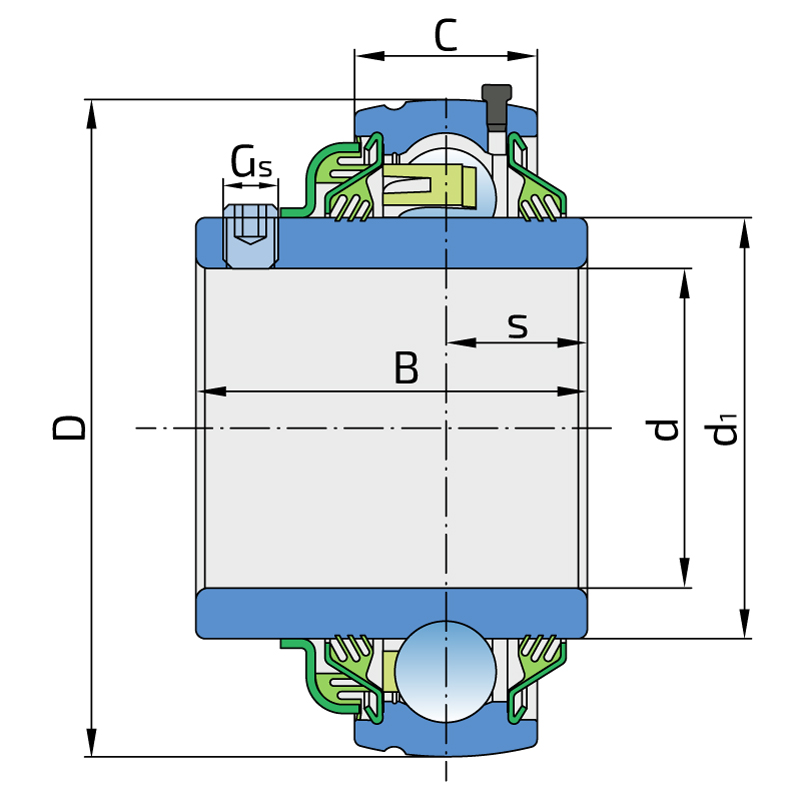

Technical datasheet:

d	Bore diameter	55
D	Outside diameter	100
B	Width inner ring	57
C	Width outer ring	25
s	Distance from inner ring side face to raceway centre	22.2
d1	Outer diameter inner ring	69.1
Gs	Set screw	M10x1
kg	Mass	1.01
Cdyn	Dynamic load rating	43.6
Co	Static load rating	29
Pu	Fatigue load limit	1.218

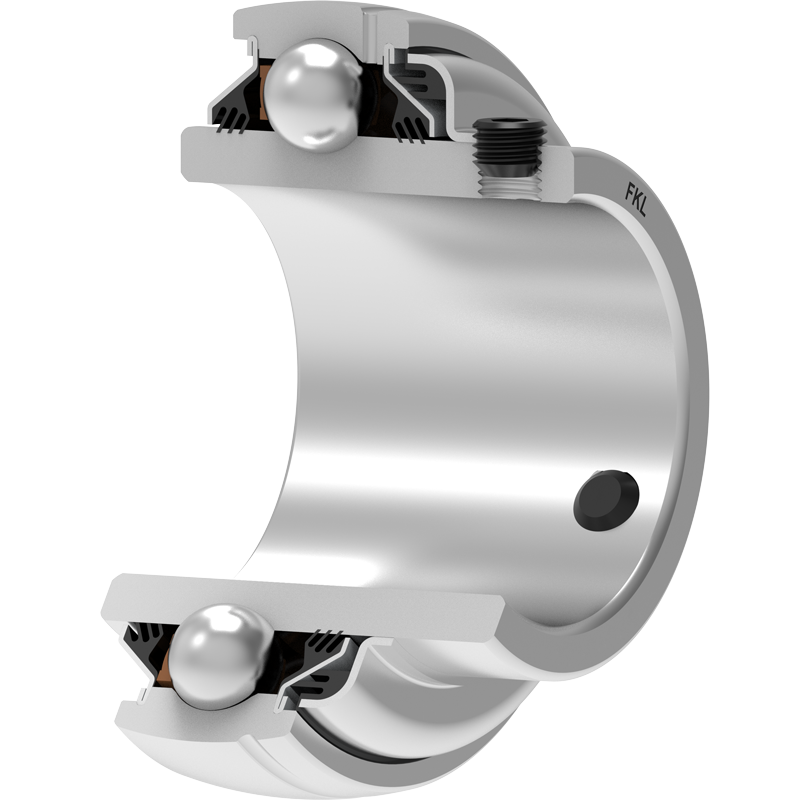

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
