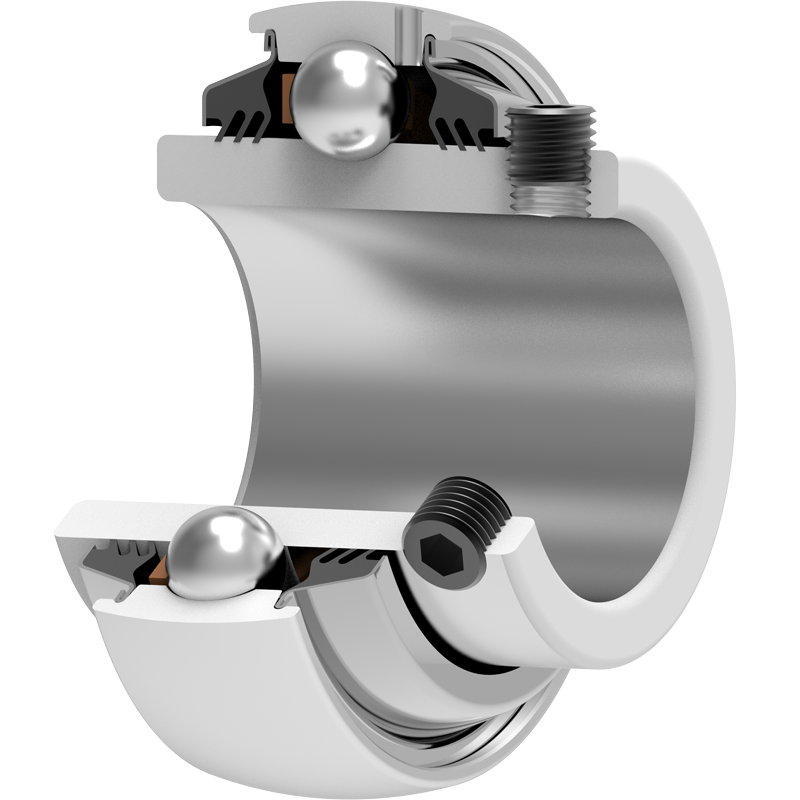

LE 212 2T FKL

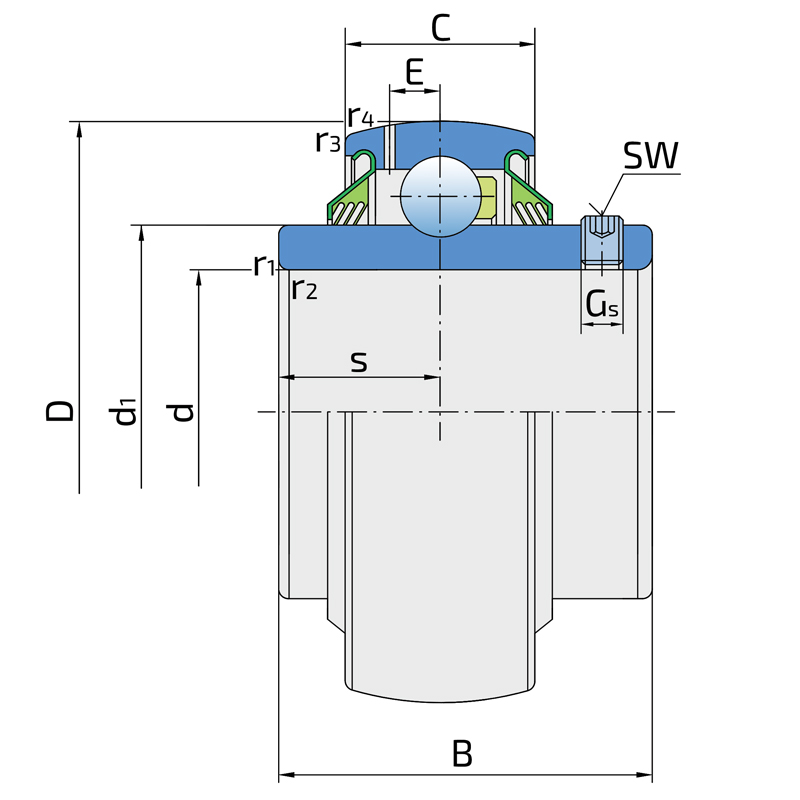

Technical datasheet:

d	Bore diameter	60
D	Outside diameter	110
B	Width inner ring	65.1
C	Width outer ring	26
s	Distance from inner ring side face to raceway centre	26
d1	Inner ring outside diameter	75.5
E	Distance from raceway centre to the hole for lubrication	7.7
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1.5
r3,4	Outside ring Chamfer dimension	2
Cdyn	Dynamic load rating	52.7
Co	Static load rating	36
Pu	Fatigue load limit	1.53
kg	Mass	1.3

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
