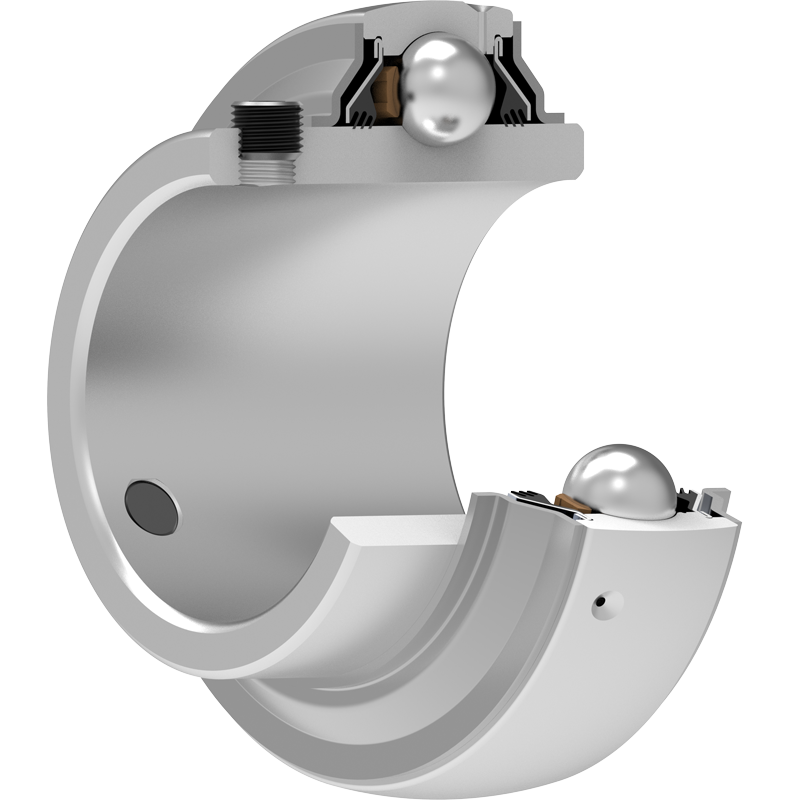

LE 212 2TB FKL

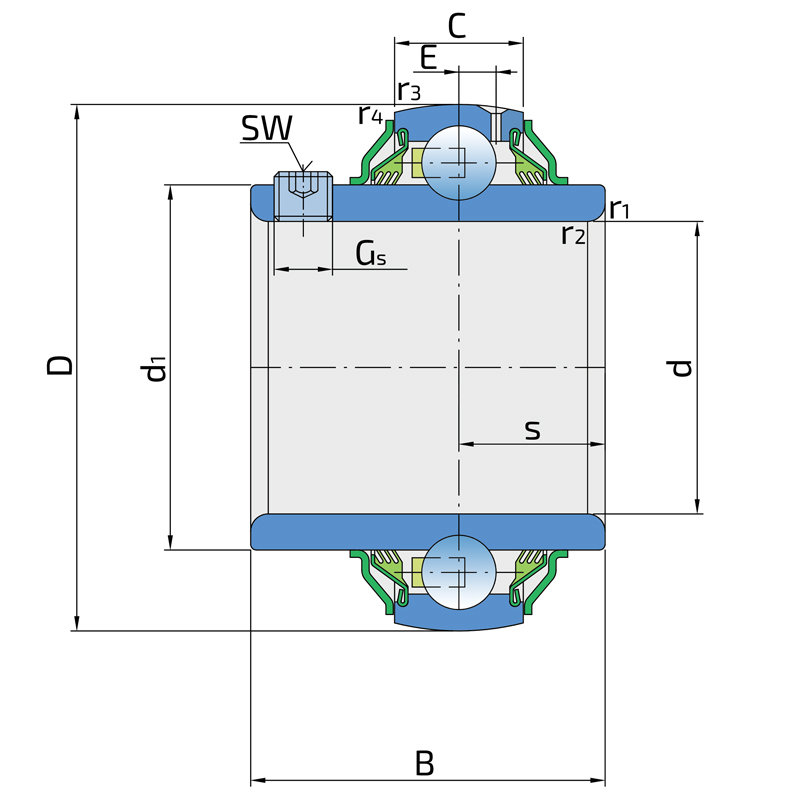

Technical datasheet:

d	Bore diameter	60
D	Outside diameter	110
B	Width inner ring	65.1
C	Width outer ring	26
s	Distance from inner ring side face to raceway centre	26
d1	Outer diameter inner ring	75.5
E	Distance from raceway centre to the hole for lubrication	7.7
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1.5
r3,4	Outside ring Chamfer dimension	2
Cdyn	Dynamic load rating	52.7
Co	Static load rating	36
Pu	Fatigue load limit	1.53
kg	Mass	1.3

Interchange:

OEM	Manufacturer	Comments
UC212AGR	SNR

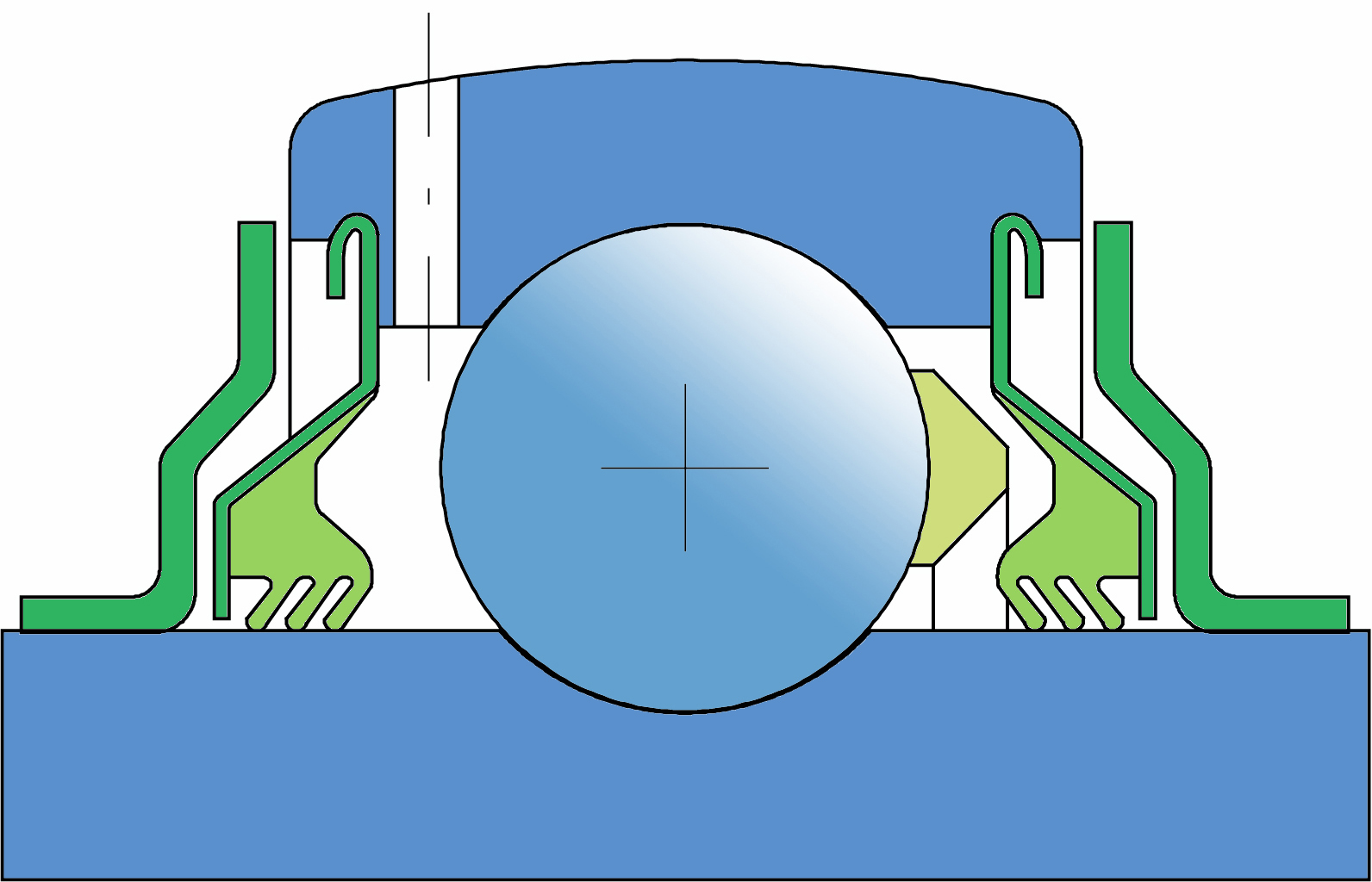

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
