LE 212 TDT FKL

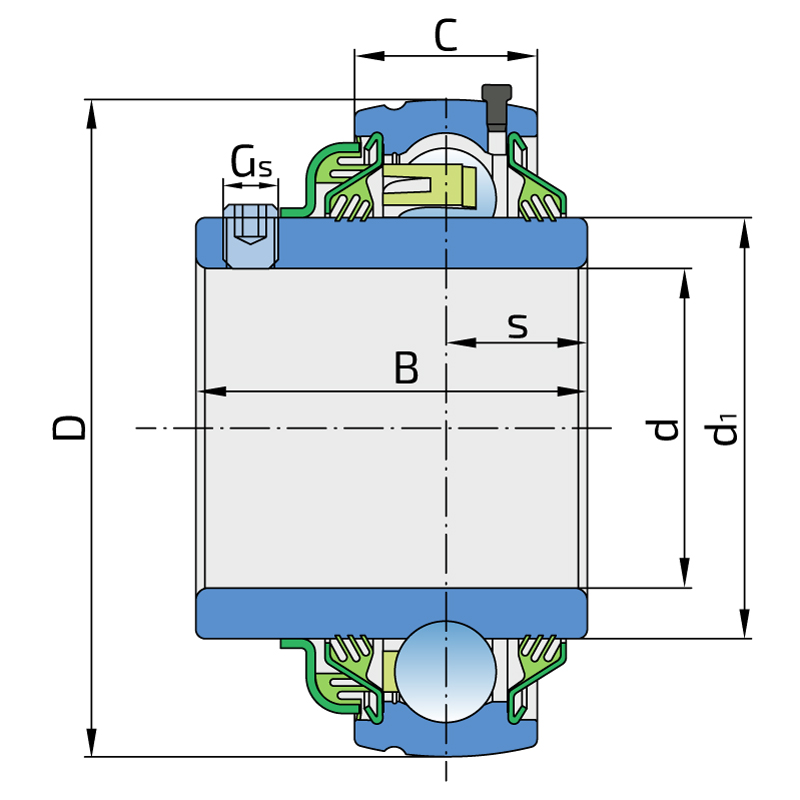

Technical datasheet:

d	Bore diameter	60
D	Outside diameter	110
B	Width inner ring	65.1
C	Width outer ring	26
s	Distance from inner ring side face to raceway centre	25.4
d1	Outer diameter inner ring	75.64
Gs	Set screw	M10x1
kg	Mass	1.42
Cdyn	Dynamic load rating	52
Co	Static load rating	36
Pu	Fatigue load limit	1.512

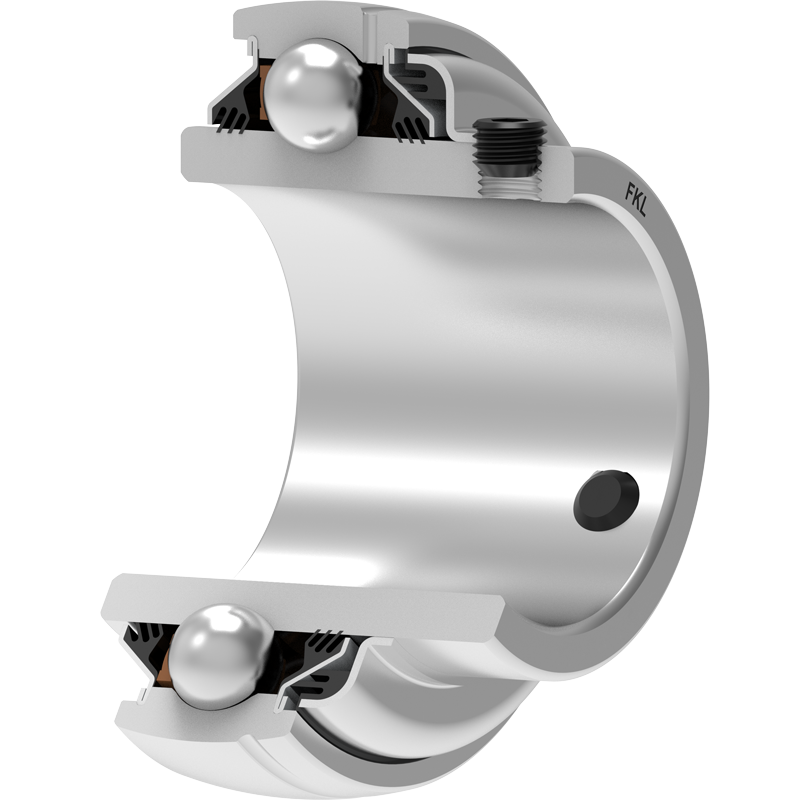

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
