LE 214 2TB FKL

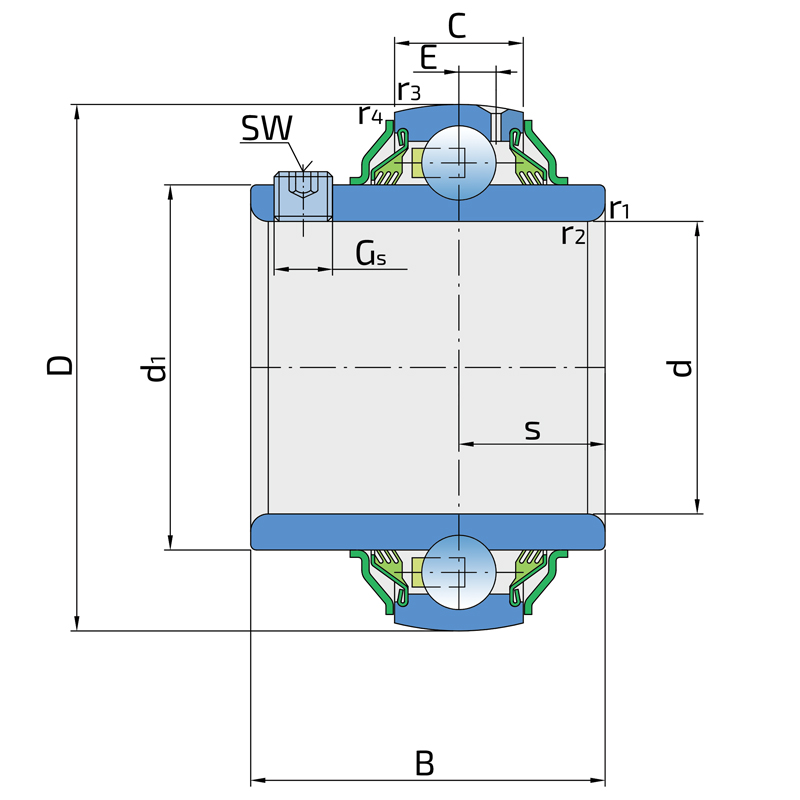

Technical datasheet:

d	Bore diameter	70
D	Outside diameter	125
B	Width inner ring	69.9
C	Width outer ring	28
s	Distance from inner ring side face to raceway centre	30.2
d1	Outer diameter inner ring	87.1
E	Distance from raceway centre to the hole for lubrication	8.1
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1.5
r3,4	Outside ring Chamfer dimension	2
Cdyn	Dynamic load rating	62.4
Co	Static load rating	44
Pu	Fatigue load limit	1.86
kg	Mass	1.9

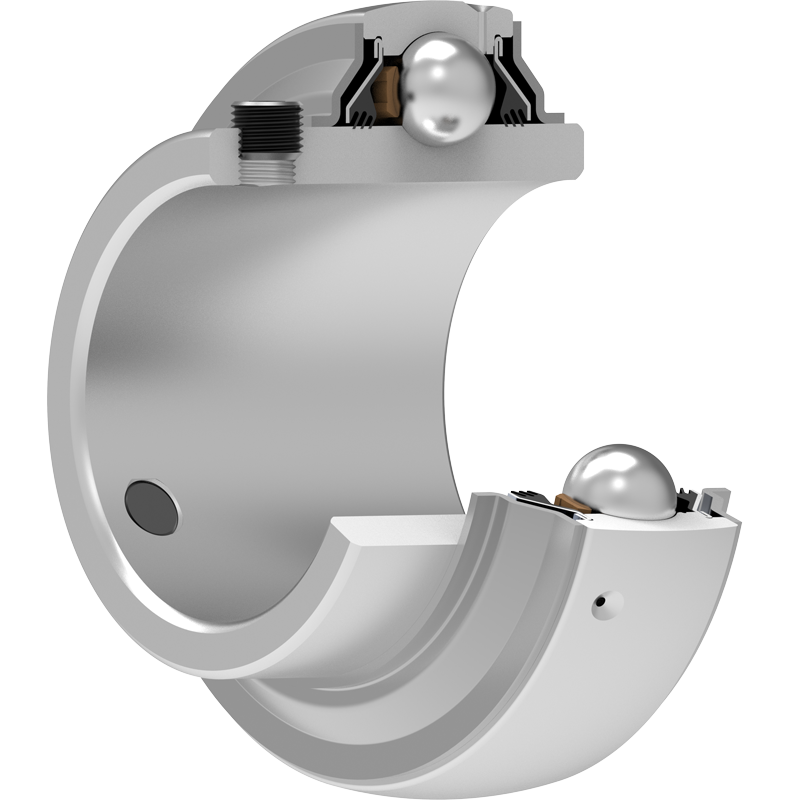

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
