LE 214 TDT FKL

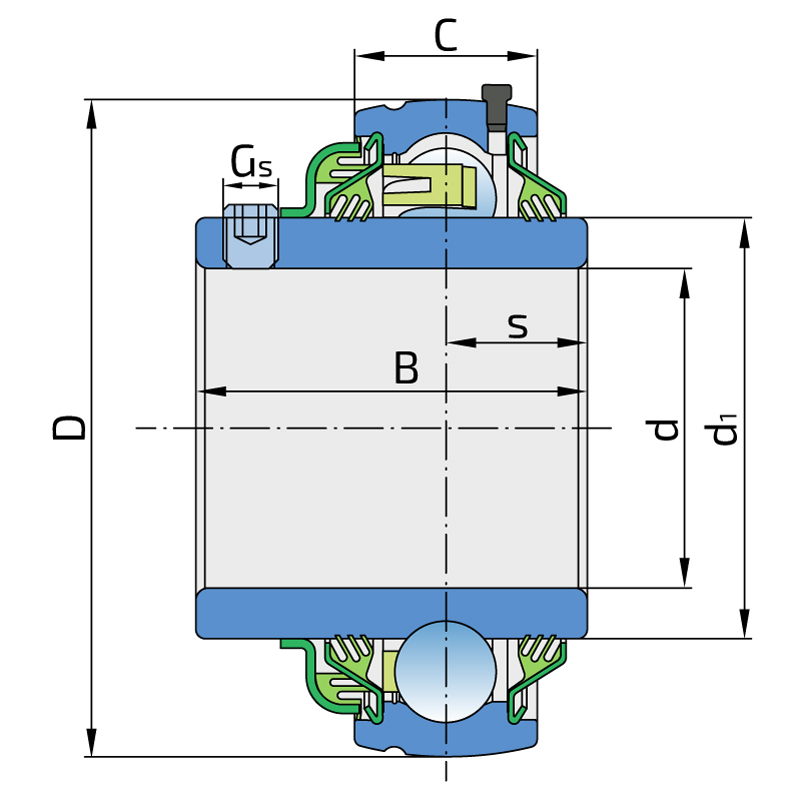

Technical datasheet:

d	Bore diameter	70
D	Outside diameter	125
B	Width inner ring	69.9
C	Width outer ring	34
s	Distance from inner ring side face to raceway centre	30.2
d1	Outer diameter inner ring	87.05
Gs	Set screw	M10x1
kg	Mass	2.04
Cdyn	Dynamic load rating	62.4
Co	Static load rating	44
Pu	Fatigue load limit	1.848

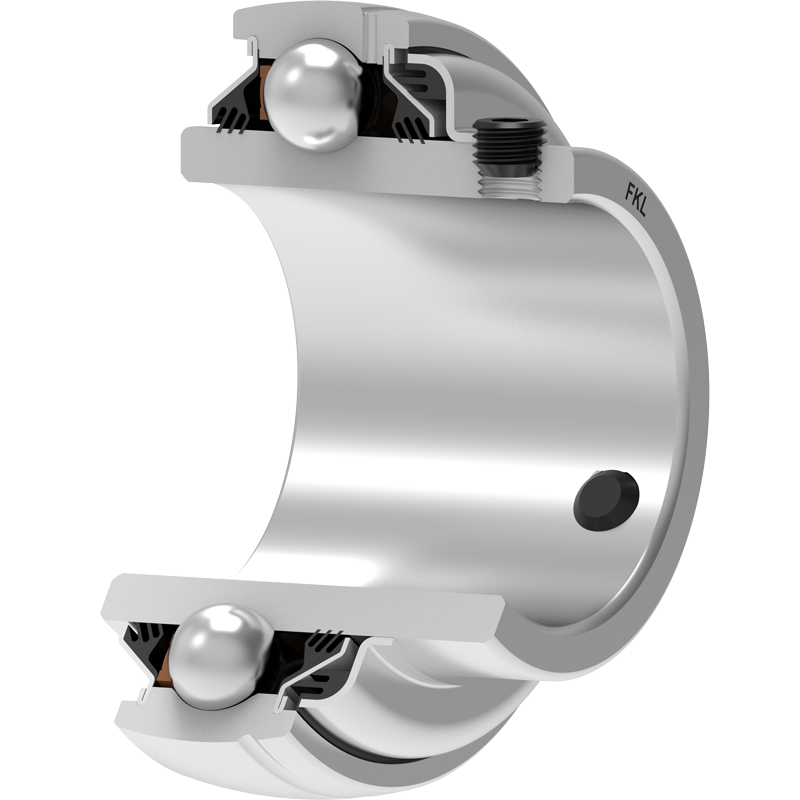

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
