LE 215 2TB FKL

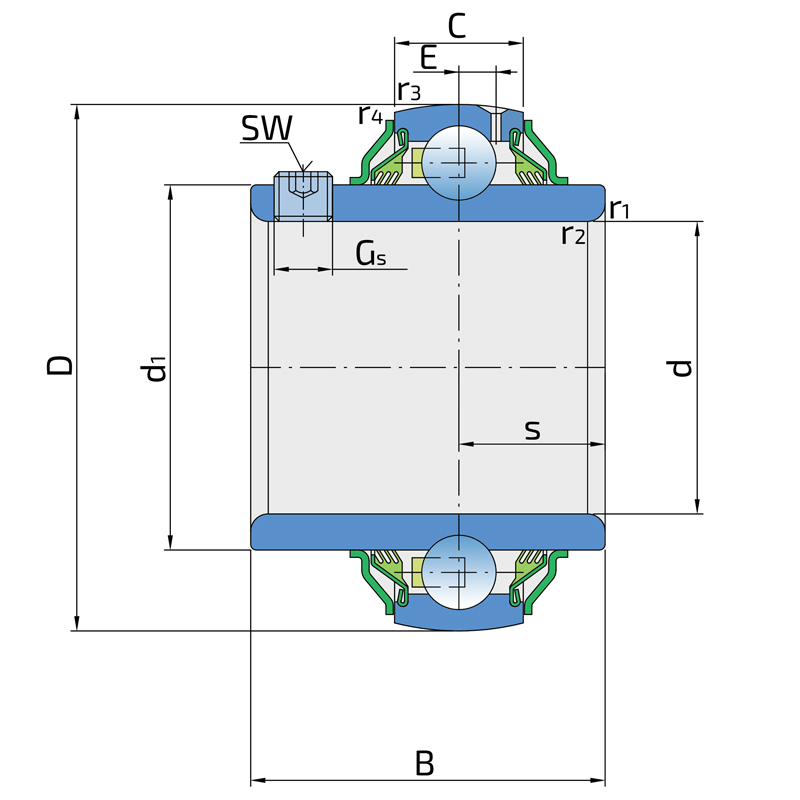

Technical datasheet:

d	Bore diameter	75
D	Outside diameter	130
B	Width inner ring	73.3
C	Width outer ring	29
s	Distance from inner ring side face to raceway centre	27
E	Distance from raceway centre to the hole for lubrication	8.3
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1.5
r3,4	Outside ring Chamfer dimension	2
Cdyn	Dynamic load rating	66.3
Co	Static load rating	49
Pu	Fatigue load limit	2.04
kg	Mass	2.1

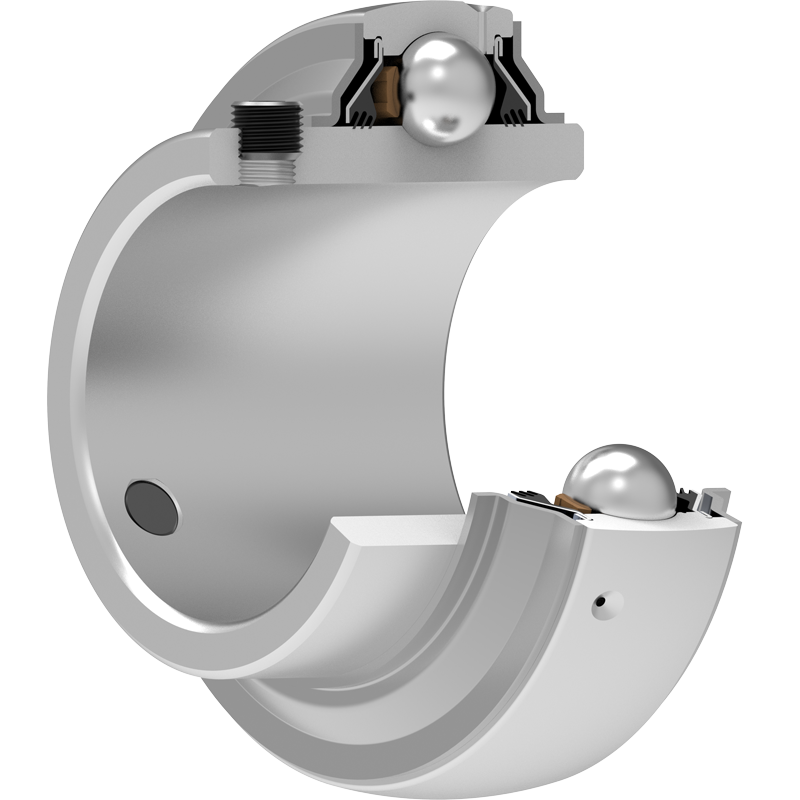

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
