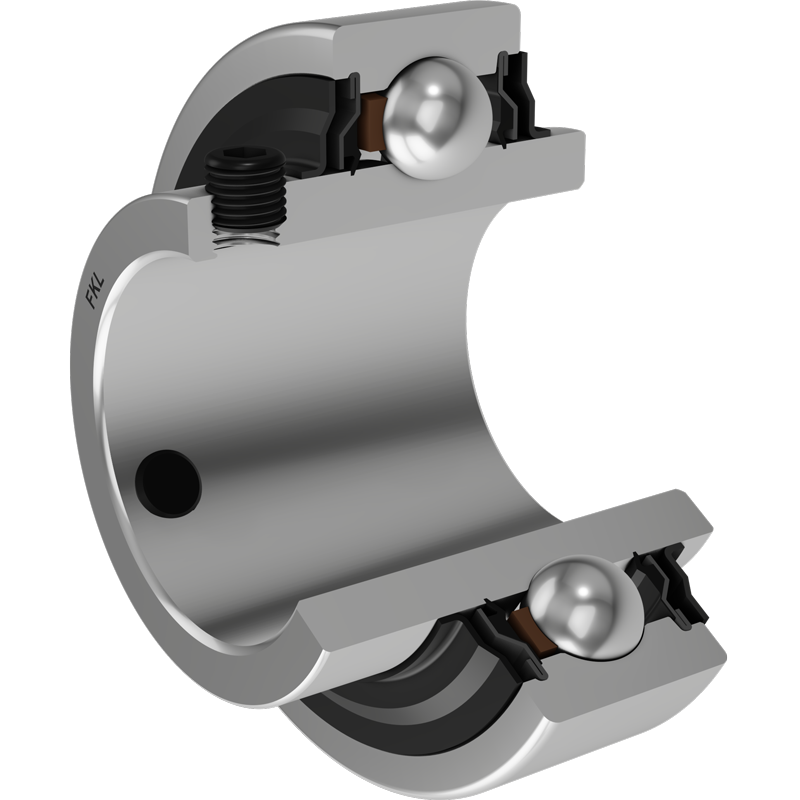

LE 324 2F.SH FKL

Technical datasheet:

d	Bore diameter	120
D	Outside diameter	260
B	Width inner ring	126
C	Width outer ring	64
s	Distance from inner ring side face to raceway centre	51
d1	Outer diameter inner ring	164
E	Distance from raceway centre to the hole for lubrication	19.2
Gs	Set screw	M18x1.6
sw	Hexagonal key size for set screw	10
r1,2	Inner ring Chamfer dimension	3
r3,4	Outside ring Chamfer dimension	3
Cdyn	Dynamic load rating	208
Co	Static load rating	186
Pu	Fatigue load limit	5.7
kg	Mass	19

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
