LEF 205 2T FKL

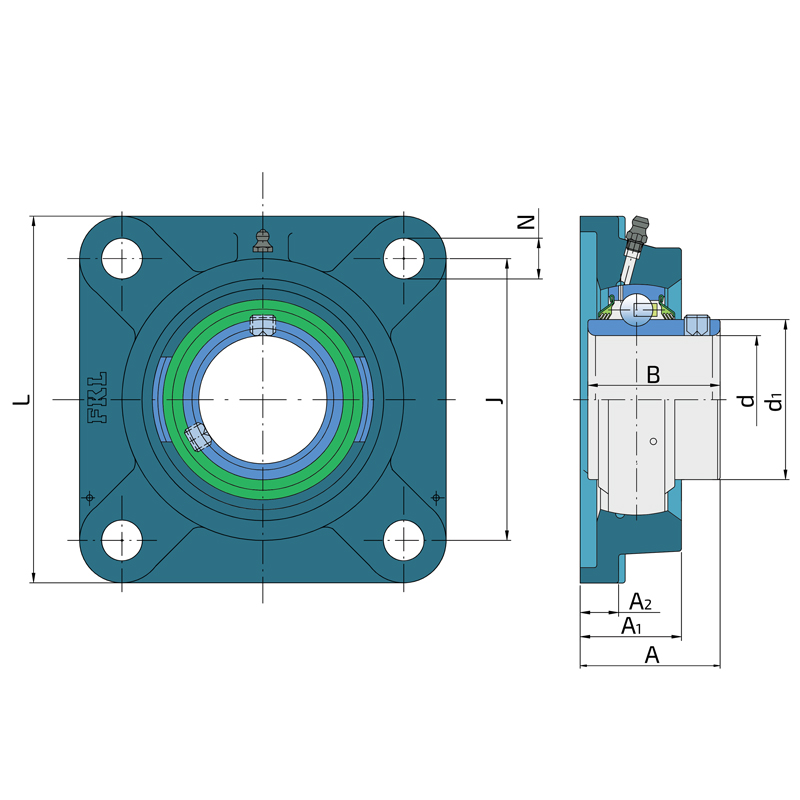

Technical datasheet:

d	Bore diameter	25
d1	Outer diameter inner ring	33.6
L	Total length	95
J	Distance between the holes	70
N	Hole diameter	12H13
A	Overall width	35.8
A1	Total housing width	27
A2	Housing flange thickness	9.5
B	Width inner ring	34.1
kg	Mass	0.75
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.328

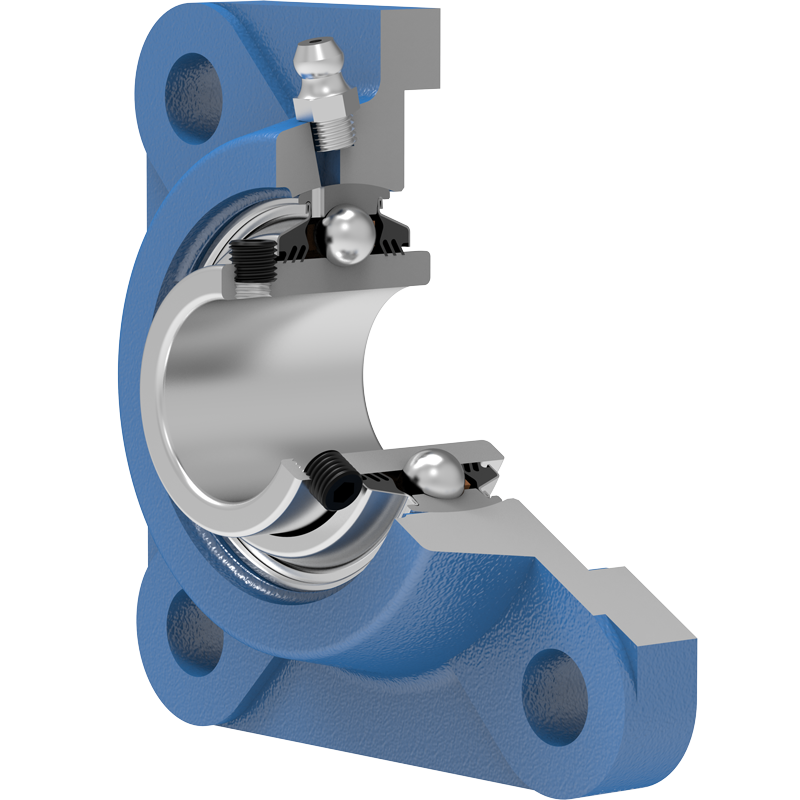

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
