LEF 206 2F FKL

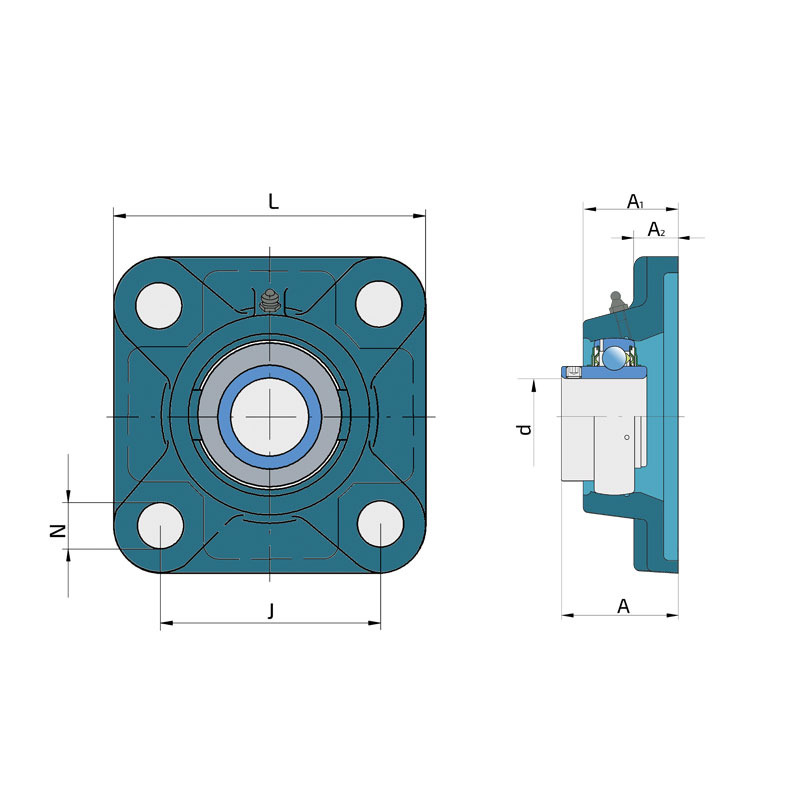

Technical datasheet:

d	Bore diameter	30
L	Overall width	108
A	Distance from the housing flange to the front of the inner ring of the bearing	40.2
A1	Total housing width	31
A2	Housing flange thickness	13
J	Pitch circle diameter	83
N	Diameter of attachment slot	12
kg	Mass	1
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.475

Interchange:

OEM	Manufacturer	Comments
1906030001	HATZENBICHLER
9902888287	FORTSCHRITT
F04100138	GASPARDO
FG56206	FAG
FYJ30TF	SKF
M-UCF206D1	NTN
RCJY30	INA
SF30	RHP
UCF206	NSK
UCF206	SNR
UCF206D1	NTN
UCF206D1	NSK
UCF206J7	FAG

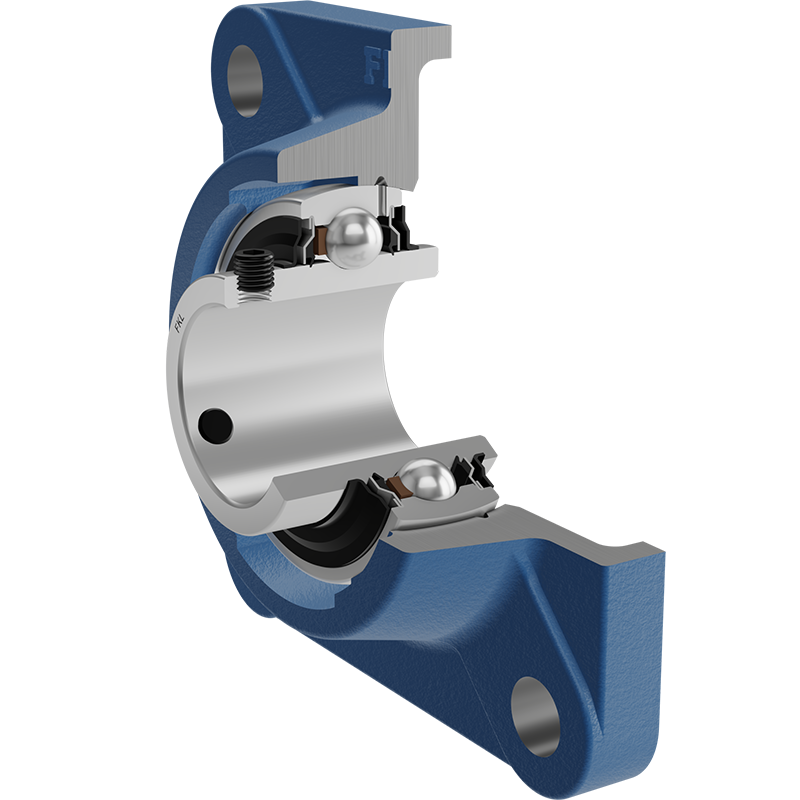

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
