LEF 206 2T FKL

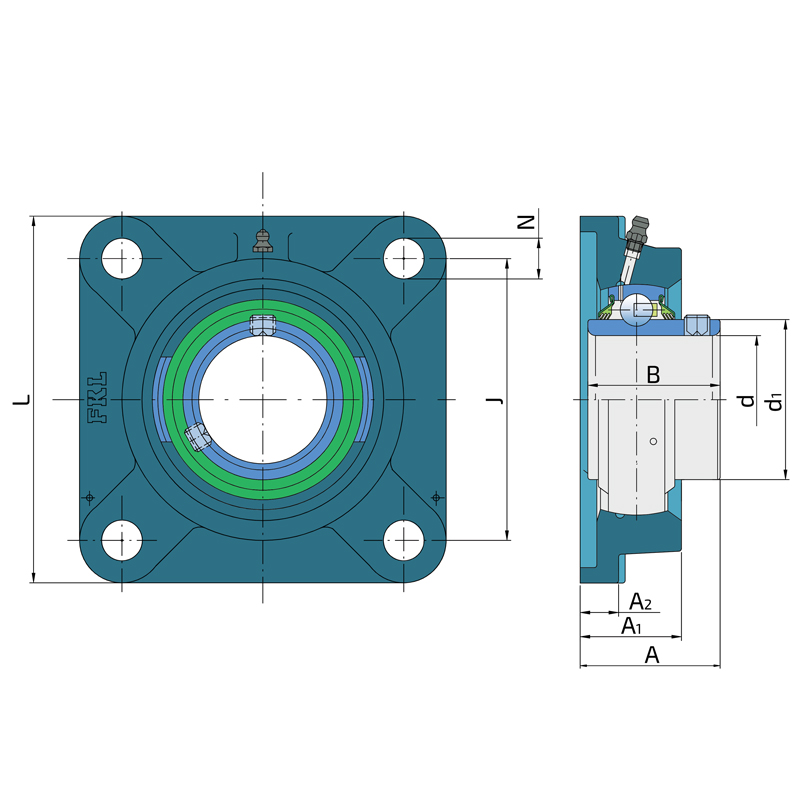

Technical datasheet:

d	Bore diameter	30
d1	Outer diameter inner ring	39.7
L	Total length	108
J	Distance between the holes	83
N	Hole diameter	12H13
A	Overall width	40.2
A1	Total housing width	31
A2	Housing flange thickness	11
B	Width inner ring	38.1
kg	Mass	1.05
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.3
Pu	Fatigue load limit	0.475

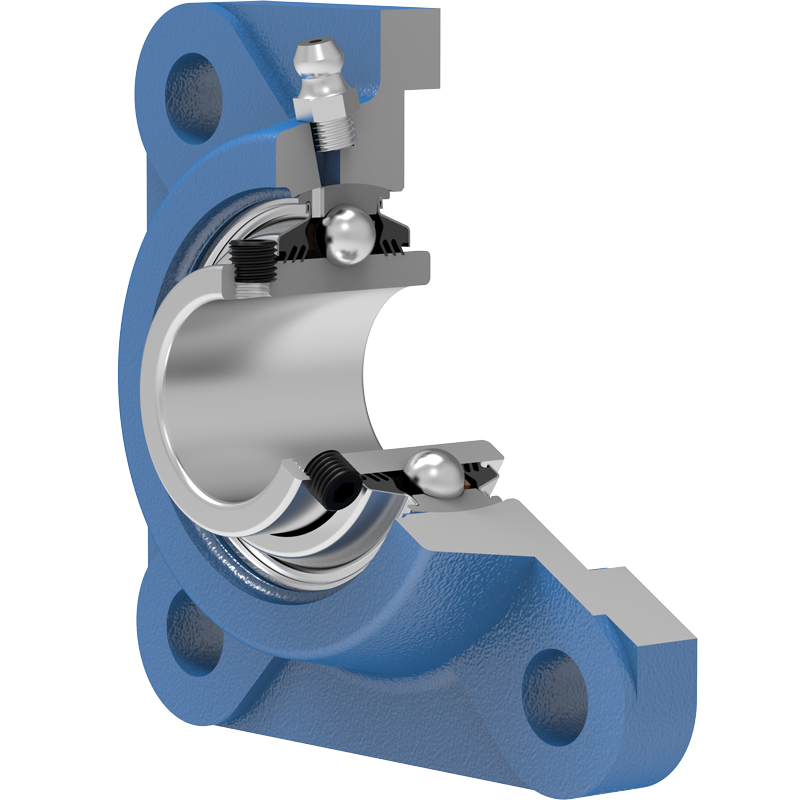

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
