LEF 211 2T FKL

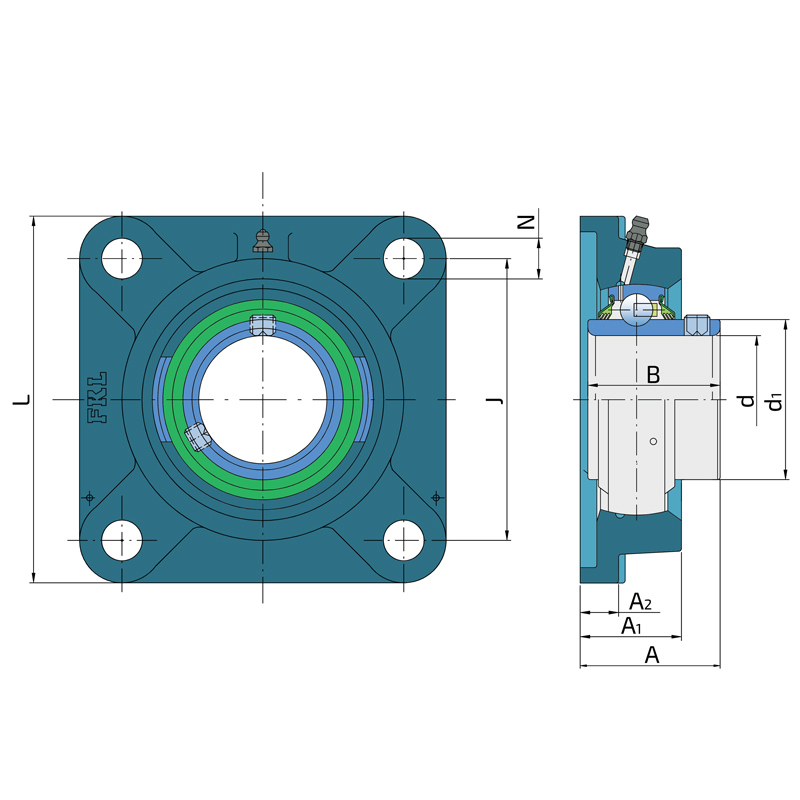

Technical datasheet:

d	Bore diameter	55
d1	Outer diameter inner ring	69.06
L	Total length	162
J	Distance between the holes	130
N	Hole diameter	19
A	Overall width	58.4
A1	Total housing width	43
A2	Housing flange thickness	17
B	Width inner ring	55.6
kg	Mass	3.04
Cdyn	Dynamic load rating	43.6
Co	Static load rating	29
Pu	Fatigue load limit	1.218

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
