LEG 205 2F FKL

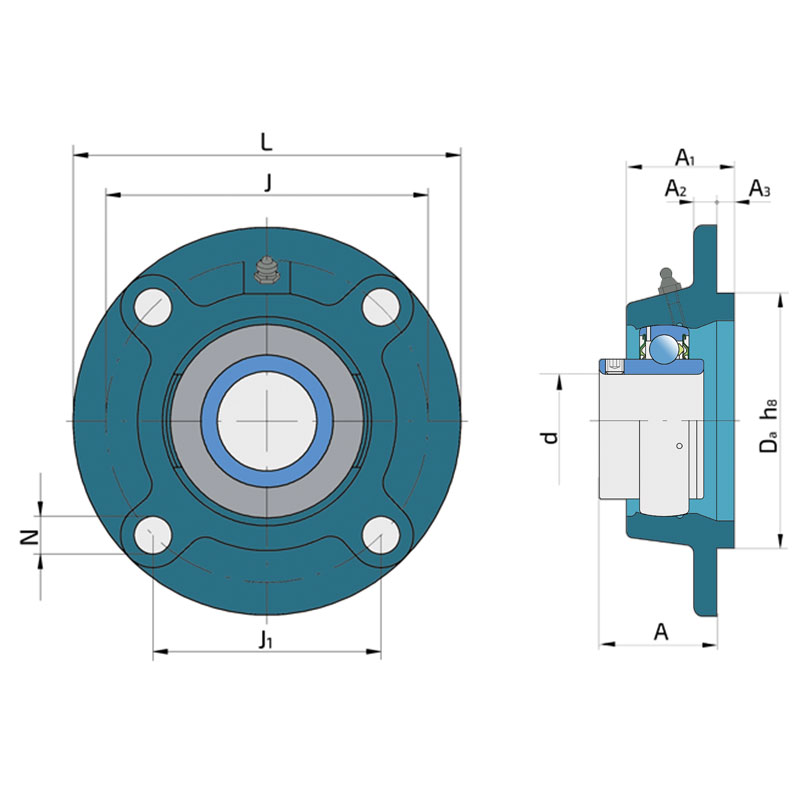

Technical datasheet:

d	Bore diameter	25
Da	Centering diameter	70
L	Overall width	115
A	Distance from the housing flange to the front of the inner ring of the bearing	29.5
A1	Total housing width	27
A2	Housing flange thickness	7
A3	Centering diameter height	6
J	Pitch circle diameter	90
J1	Distance between the holes	63.6
N	Diameter of attachment slot	12
kg	Mass	0.98
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.335

Interchange:

OEM	Manufacturer	Comments
FYC25TF	SKF
M-UCFC205D1	NTN
RMEY25	INA
UCFC205	NTN
UCFC205	NSK
UCFC205	SNR
UCFC205J7	FAG

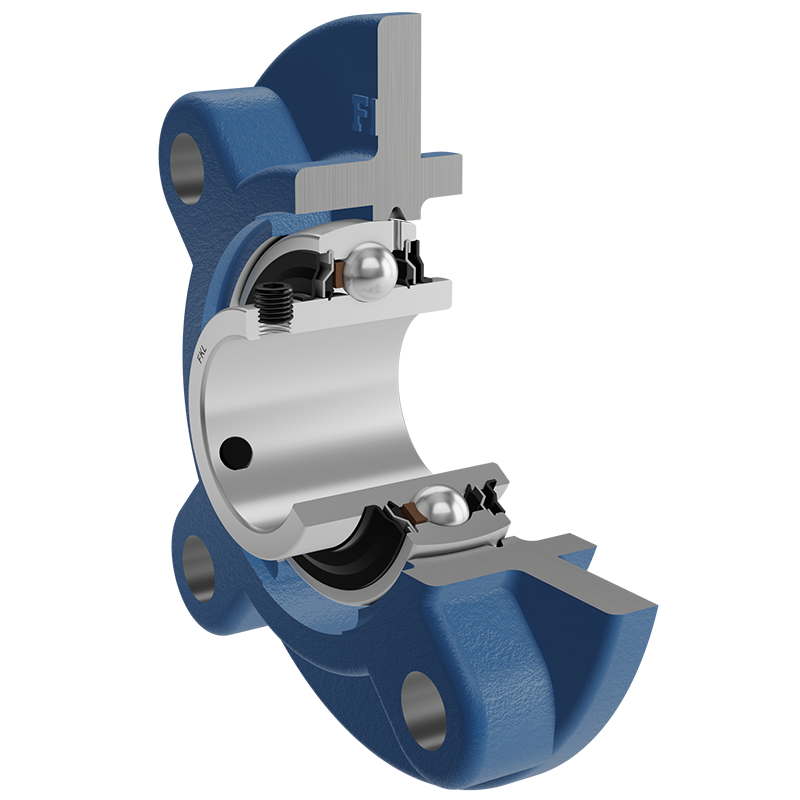

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
