LEG 205 2T FKL

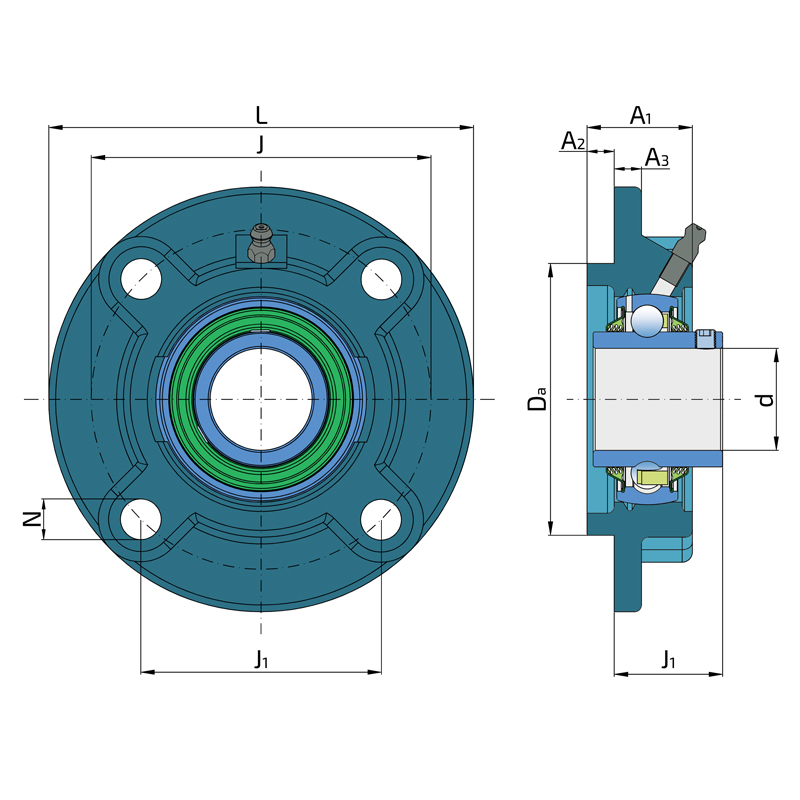

Technical datasheet:

d	Bore diameter	25
Da	Centering diameter	70
L	Overall width	115
A	Distance from the housing flange to the front of the inner ring of the bearing	29.5
A1	Total housing width	27
A2	Housing flange thickness	7
A3	Centering diameter height	6
J	Pitch circle diameter	90
J1	Distance between the holes	63.6
N	Diameter of attachment slot	12
kg	Mass	0.98
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.335

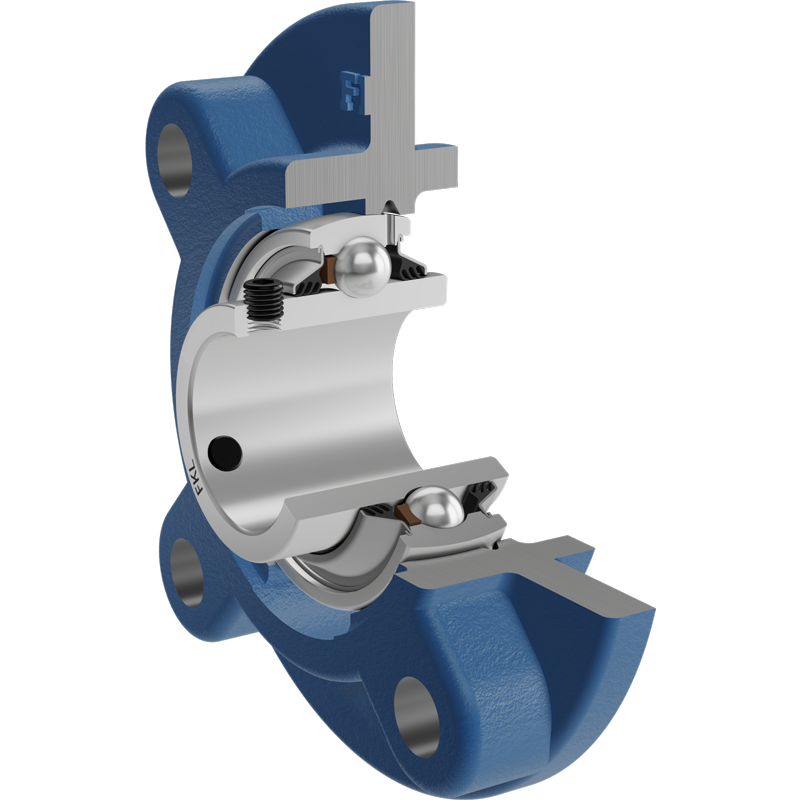

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
