LEG 206 2T FKL

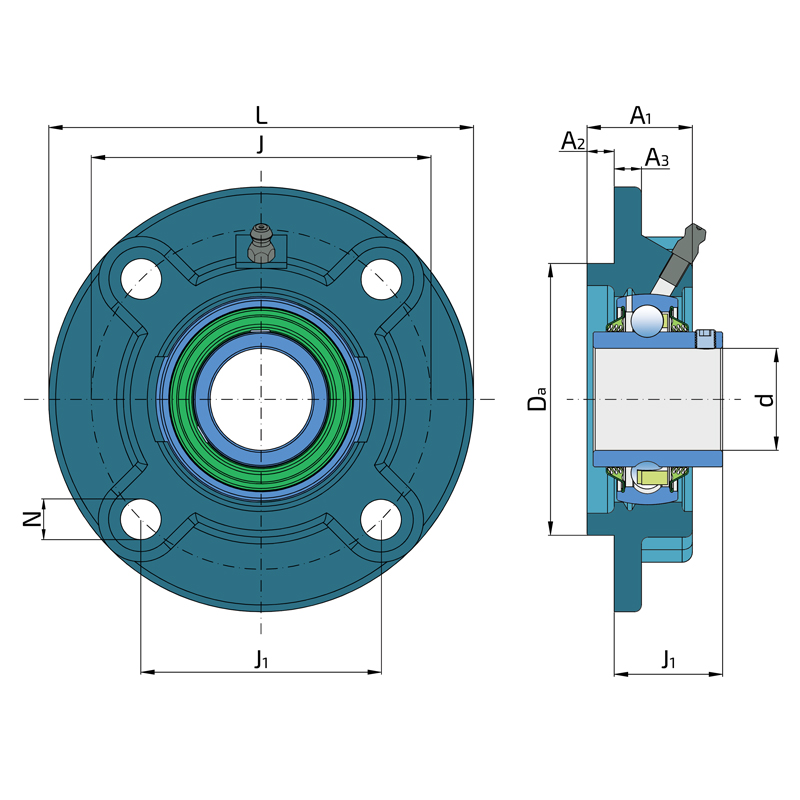

Technical datasheet:

d	Bore diameter	30
Da	Centering diameter	80
L	Overall width	125
A	Distance from the housing flange to the front of the inner ring of the bearing	32.2
A1	Total housing width	31
A2	Housing flange thickness	8
A3	Centering diameter height	8
J	Pitch circle diameter	100
J1	Distance between the holes	70.7
N	Diameter of attachment slot	12
kg	Mass	1.4
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.475

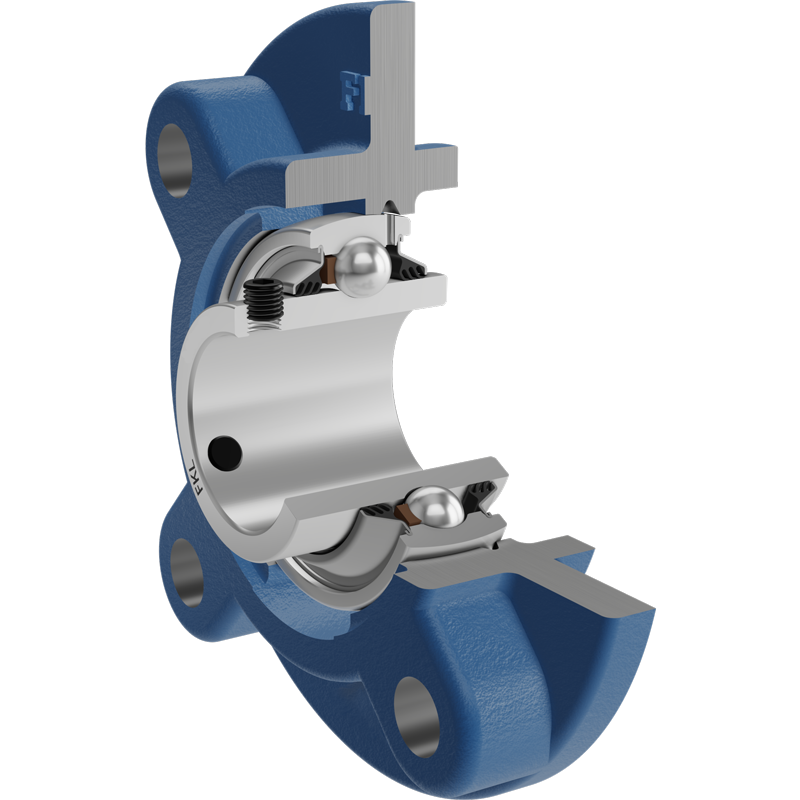

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
