LEG 207 2T FKL

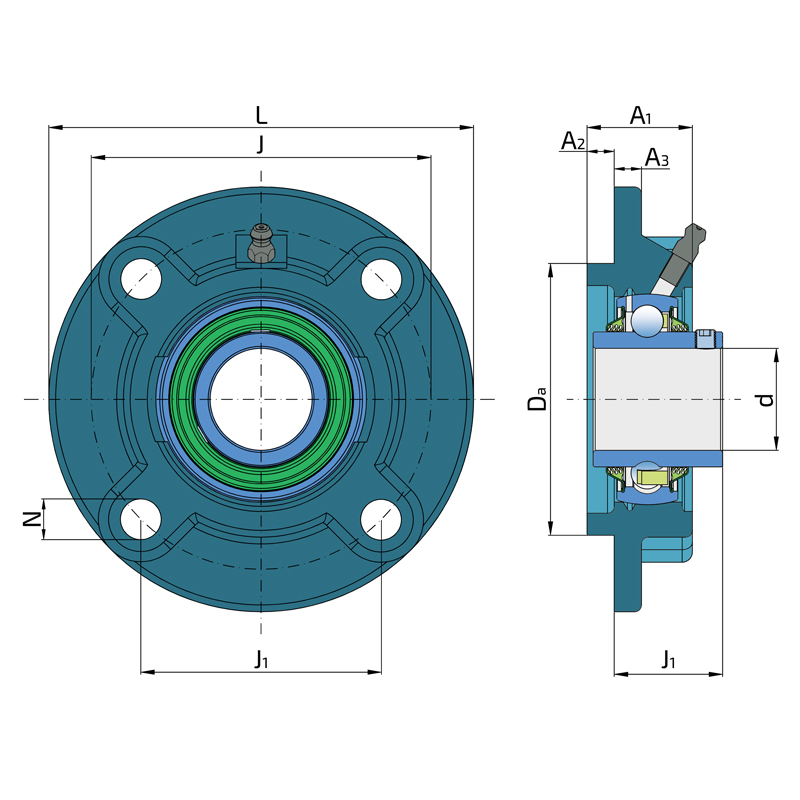

Technical datasheet:

d	Bore diameter	35
Da	Centering diameter	90
L	Overall width	135
A	Distance from the housing flange to the front of the inner ring of the bearing	36.5
A1	Total housing width	34
A2	Housing flange thickness	9
A3	Centering diameter height	8
J	Pitch circle diameter	110
J1	Distance between the holes	77.8
N	Diameter of attachment slot	14
kg	Mass	1.64
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.655

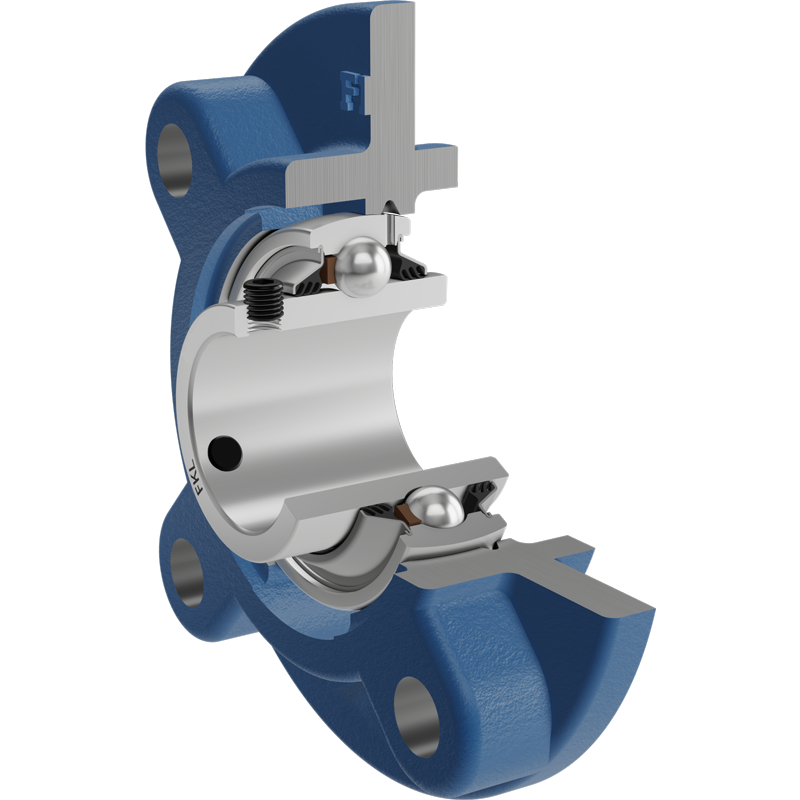

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
