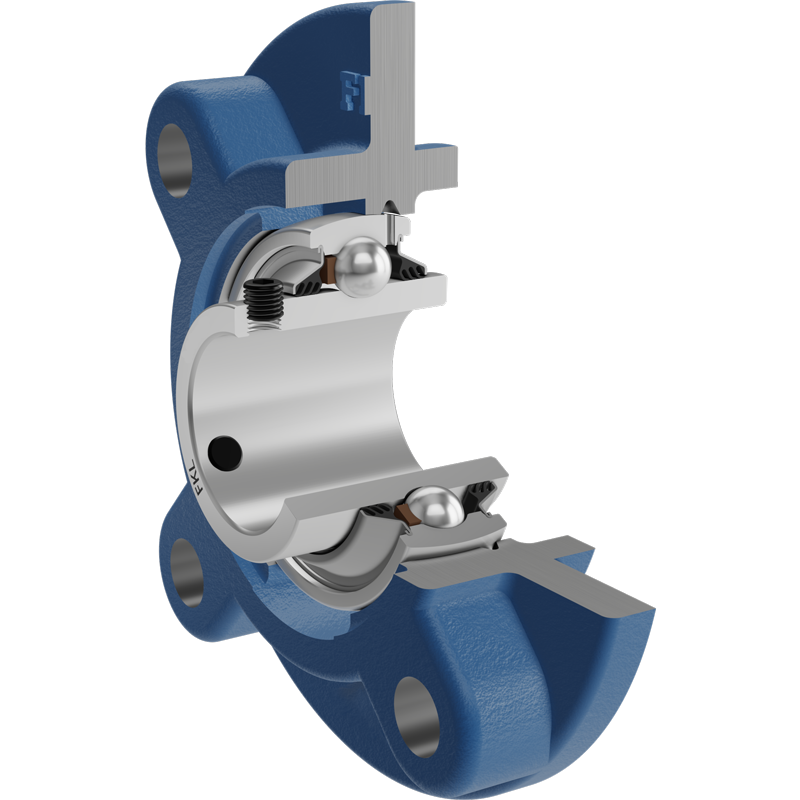

LEG 208 2T FKL

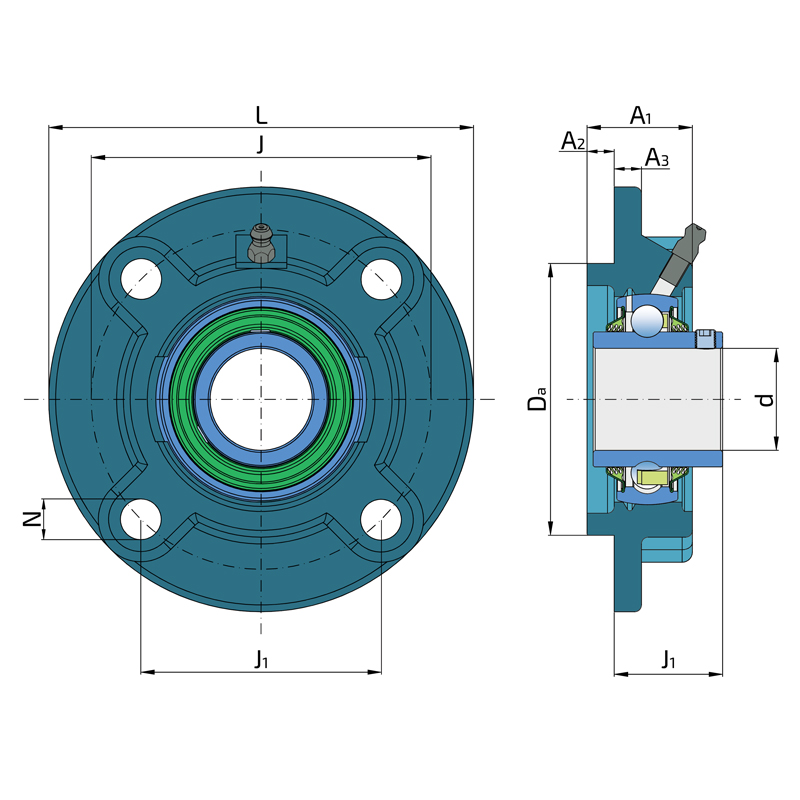

Technical datasheet:

d	Bore diameter	40
Da	Centering diameter	100
L	Overall width	145
A	Distance from the housing flange to the front of the inner ring of the bearing	41.2
A1	Total housing width	36
A2	Housing flange thickness	9
A3	Centering diameter height	10
J	Pitch circle diameter	120
J1	Distance between the holes	84.8
N	Diameter of attachment slot	14
kg	Mass	1.89
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.8

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
