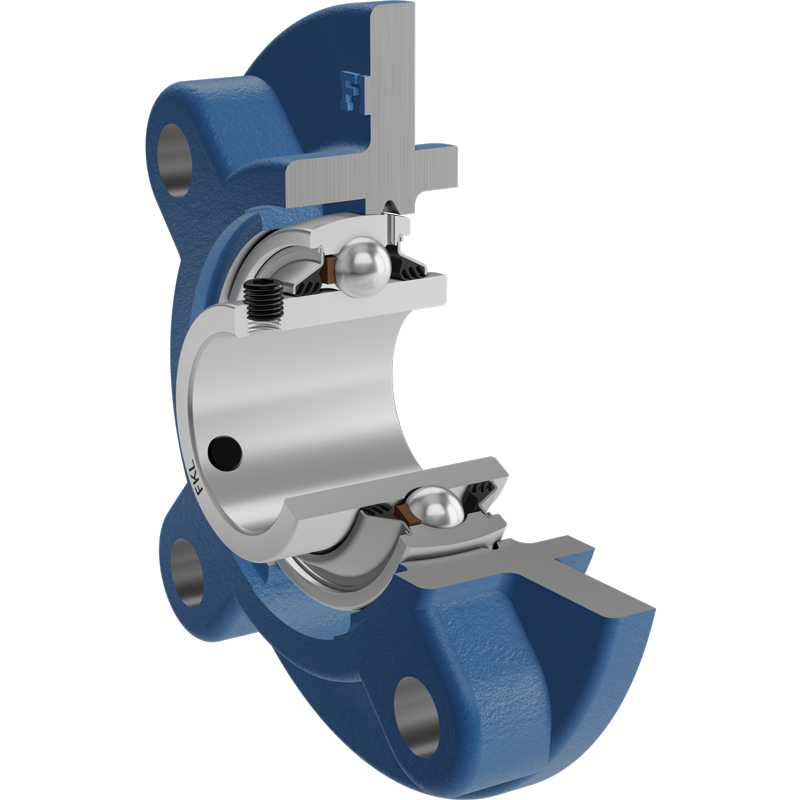

LEG 209 2T FKL

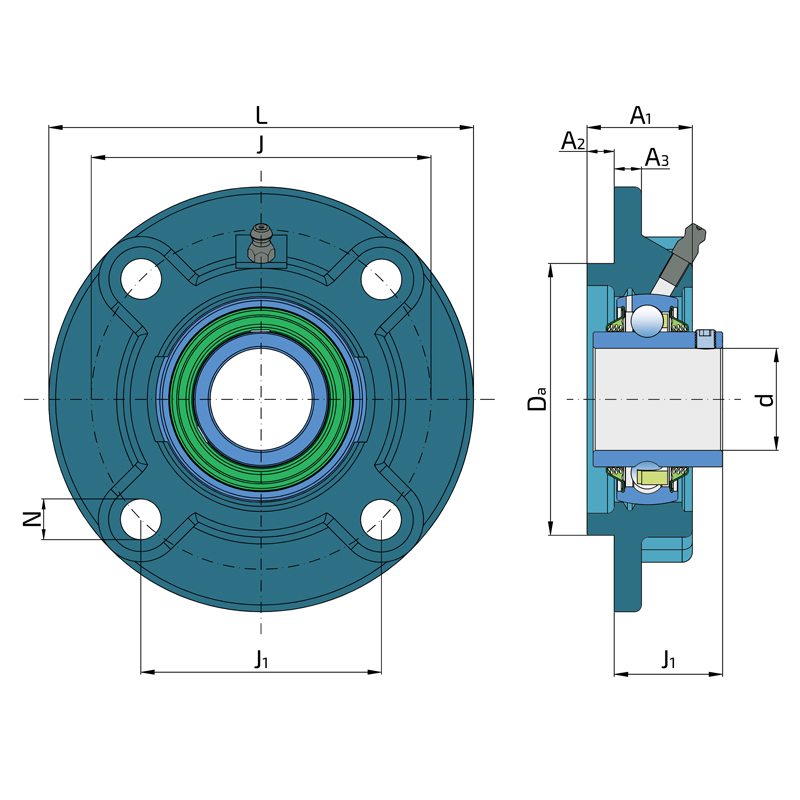

Technical datasheet:

d	Bore diameter	45
Da	Centering diameter	105
L	Overall width	160
A	Distance from the housing flange to the front of the inner ring of the bearing	40.2
A1	Total housing width	38
A2	Housing flange thickness	14
A3	Centering diameter height	12
J	Pitch circle diameter	132
J1	Distance between the holes	93.3
N	Diameter of attachment slot	16
kg	Mass	2.64
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.915

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
