LEG 210 2T FKL

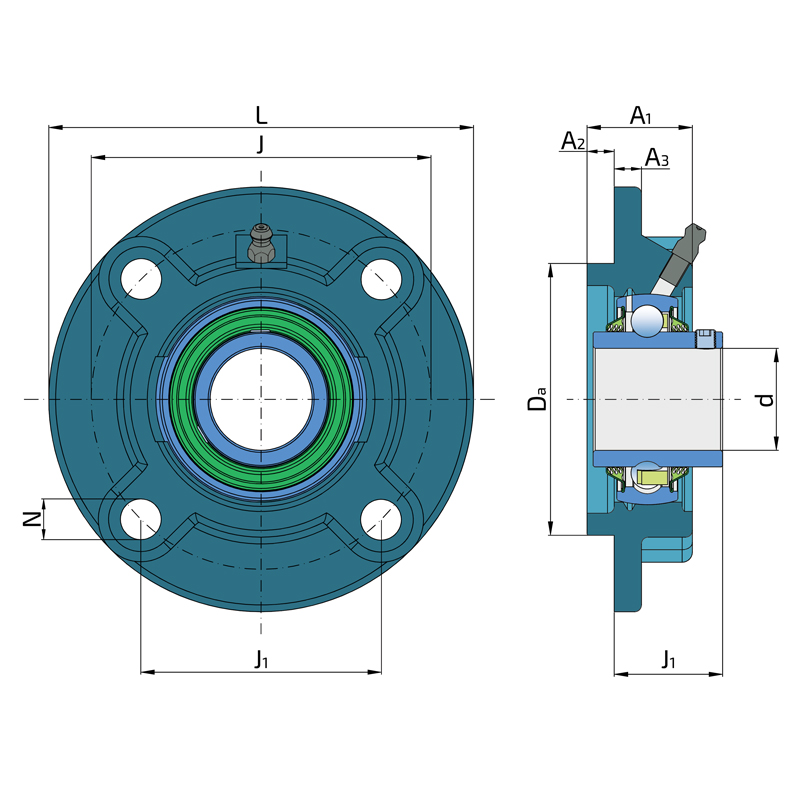

Technical datasheet:

d	Bore diameter	50
Da	Centering diameter	110
L	Overall width	165
A	Distance from the housing flange to the front of the inner ring of the bearing	42.6
A1	Total housing width	40
A2	Housing flange thickness	14
A3	Centering diameter height	12
J	Pitch circle diameter	138
J1	Distance between the holes	97.6
N	Diameter of attachment slot	16
kg	Mass	2.93
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.98

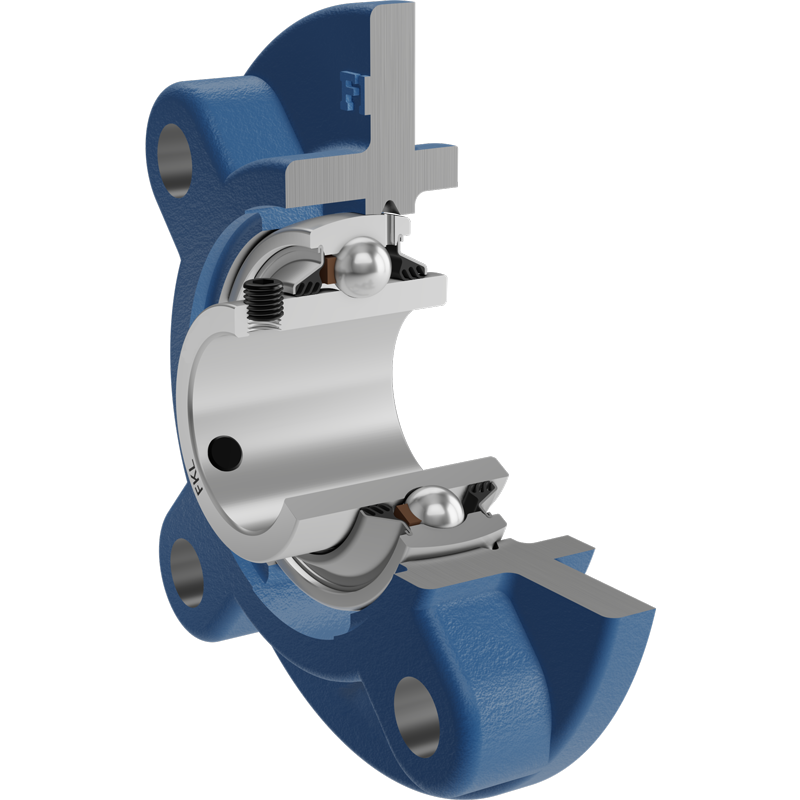

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
