LEG 212 2TB.H FKL

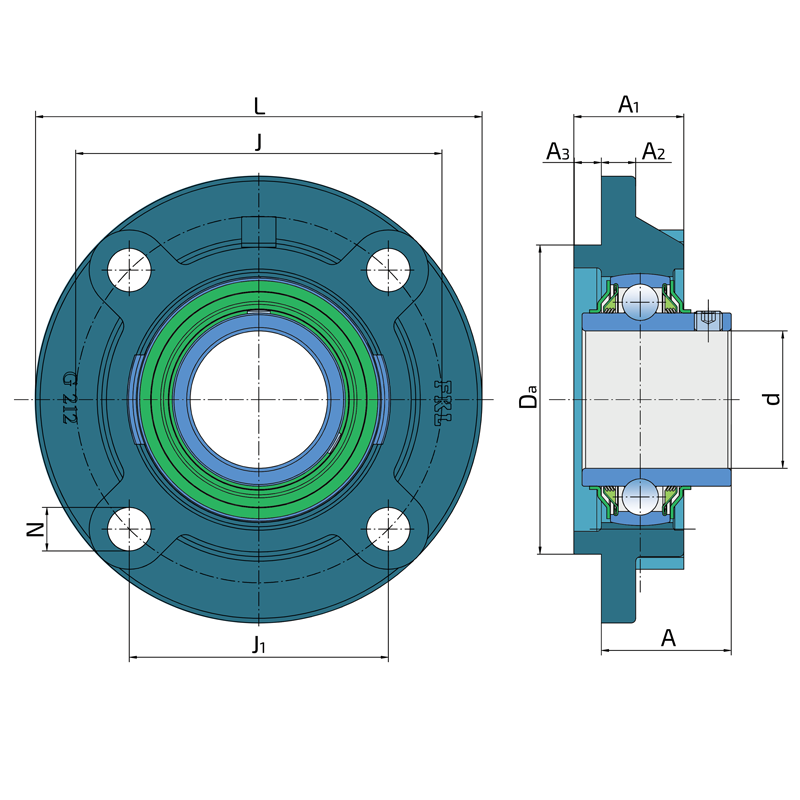

Technical datasheet:

d	Bore diameter	60
Da	Centering diameter	135
L	Overall width	195
A	Distance from the housing flange to the front of the inner ring of the bearing	56.7
A1	Total housing width	48
A2	Housing flange thickness	15
A3	Centering diameter height	12
J	Pitch circle diameter	160
J1	Distance between the holes	113.1
N	Diameter of attachment slot	19
kg	Mass	5.02
Cdyn	Dynamic load rating	52.7
Co	Static load rating	36
Pu	Fatigue load limit	1.53

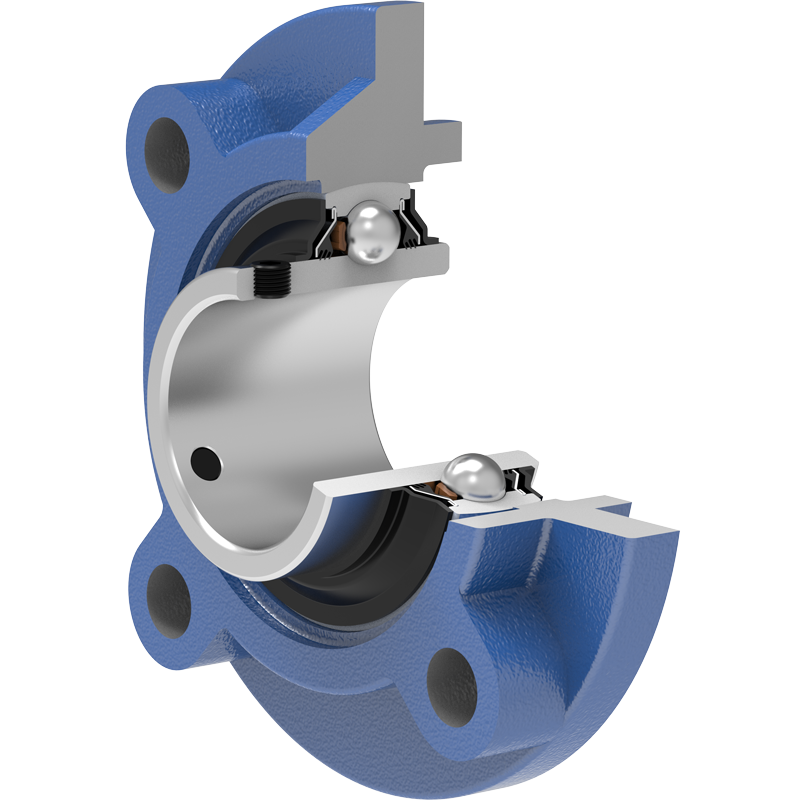

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
