LEGS 208 2F.H FKL

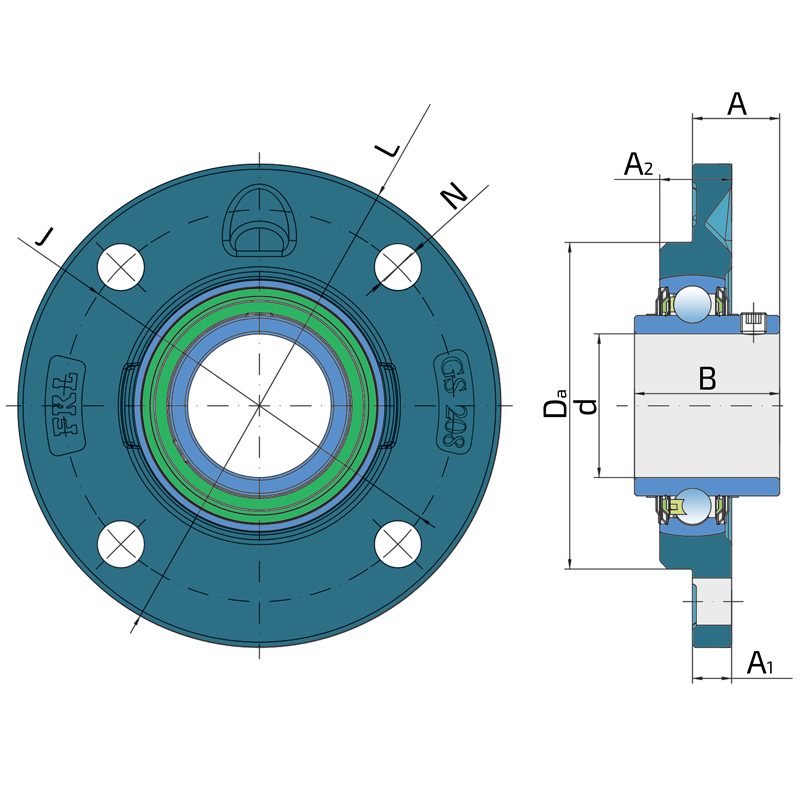

Technical datasheet:

d	Bore diameter	40
Da	Centering diameter	100
L	Diameter of housings	145
A	Distance from the housing flange to the front of the inner ring of the bearing	29.2
A1	Housing flange thickness	11.5
A2	Height of the housing	23
J	Pitch circle diameter	120
N	Hole diameter	11.5
B	Width inner ring	49.2
kg	Mass	1.656
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.798

Interchange:

OEM	Manufacturer	Comments
RMEY40	INA

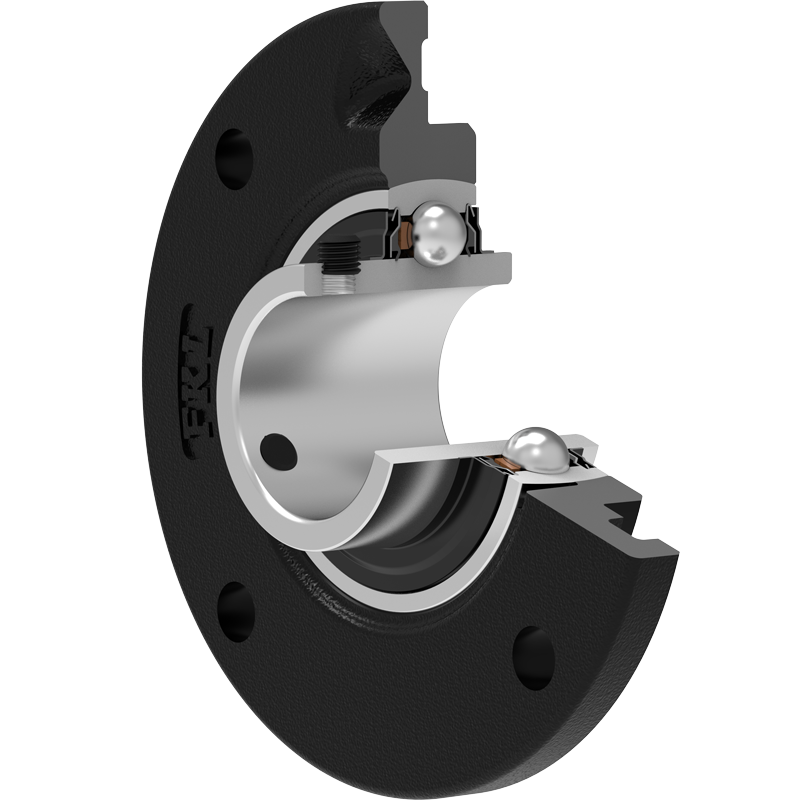

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
