LEGS 216 2F.C82.6 FKL

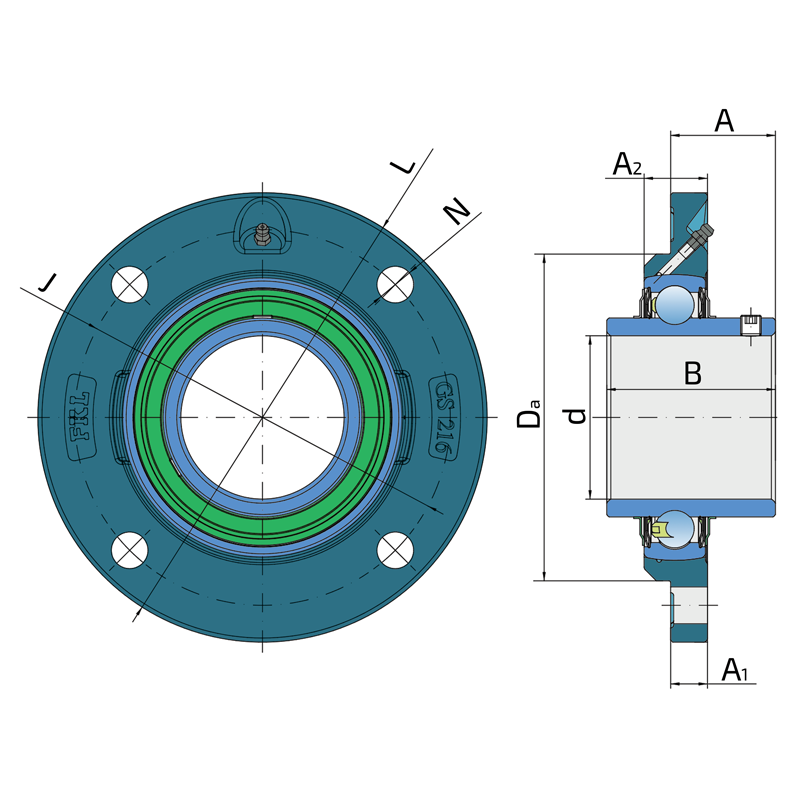

Technical datasheet:

d	Bore diameter	80
Da	Centering diameter	160
L	Diameter of housings	220
A	Distance from the housing flange to the front of the inner ring of the bearing	51.3
A1	Housing flange thickness	18
A2	Height of the housing	31
J	Pitch circle diameter	184
N	Hole diameter	18
B	Width inner ring	82.6
kg	Mass	5.308
Cdyn	Dynamic load rating	72
Co	Static load rating	54
Pu	Fatigue load limit	2.268

Interchange:

OEM	Manufacturer	Comments
RMEY80	INA

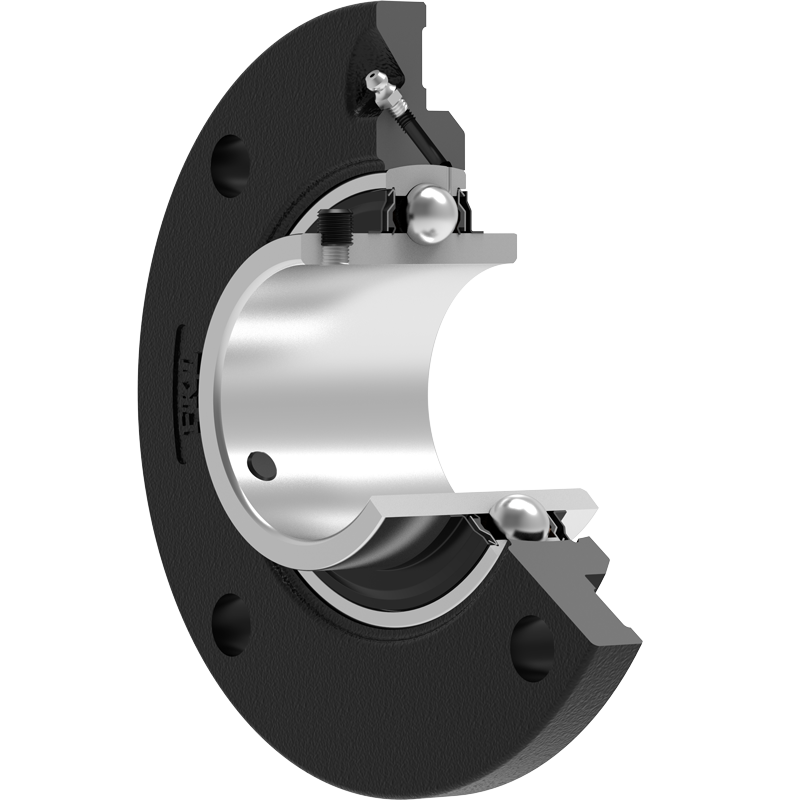

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
