LEN 205 2T FKL

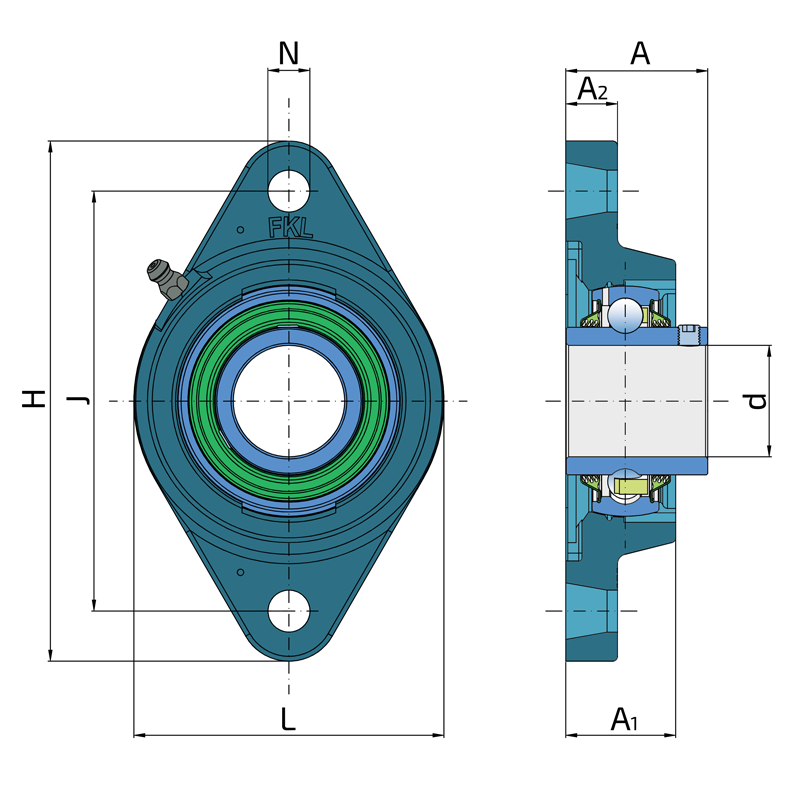

Technical datasheet:

d	Bore diameter	25
L	Overall width	68
A	Distance from the housing flange to the front of the inner ring of the bearing	35.8
A1	Total housing width	27
A2	Housing flange thickness	14
H	Housing height	130
J	Distance between the holes	99
N	Diameter of attachment slot	16
kg	Mass	0.61
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.335

Interchange:

OEM	Manufacturer	Comments
UCFL205L3	SNR

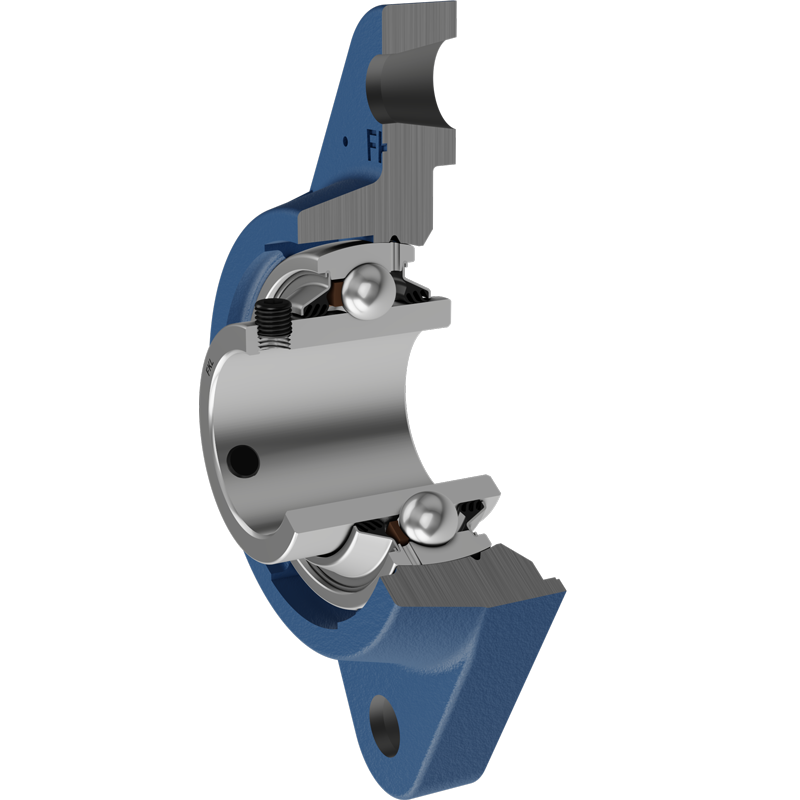

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
