LEN 206 2T FKL

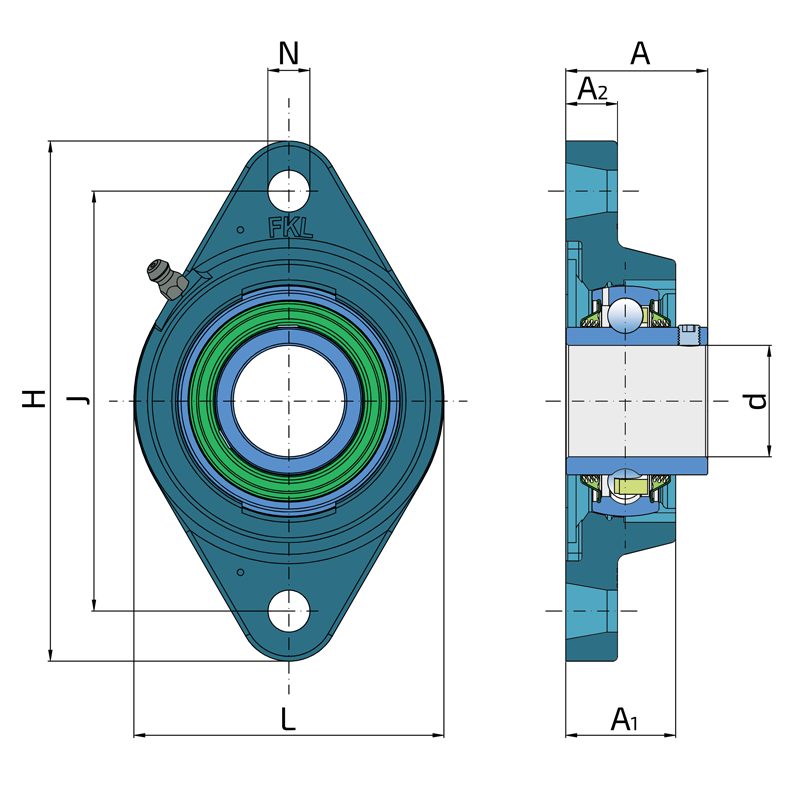

Technical datasheet:

d	Bore diameter	30
L	Overall width	80
A	Distance from the housing flange to the front of the inner ring of the bearing	40.2
A1	Total housing width	30.5
A2	Housing flange thickness	30.5
H	Housing height	148
J	Distance between the holes	117
N	Diameter of attachment slot	16
kg	Mass	0.9
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.475

Interchange:

OEM	Manufacturer	Comments
UCFL206L3	SNR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
