LEN 207 2T FKL

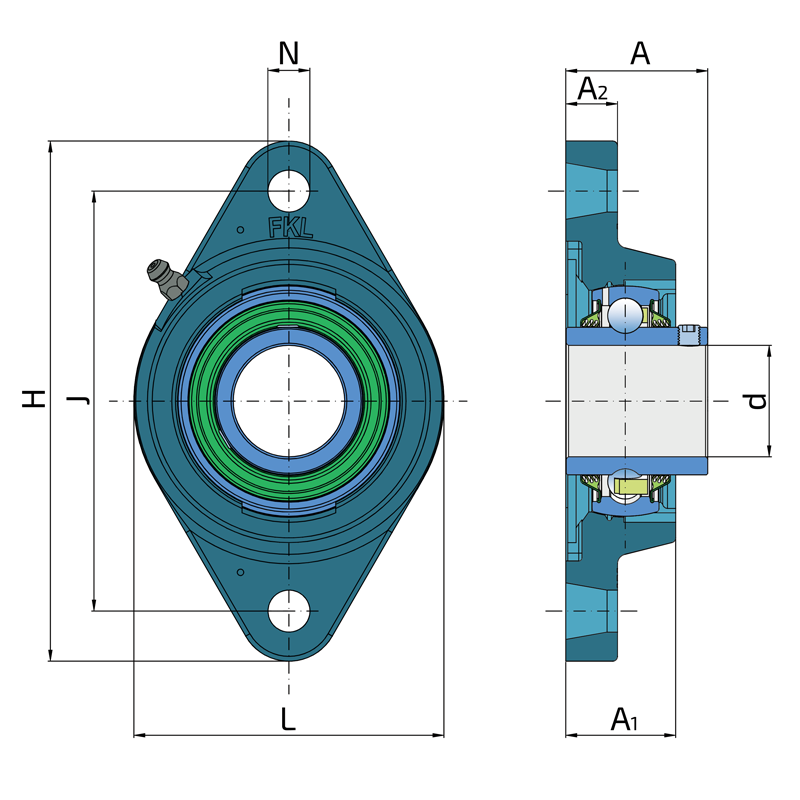

Technical datasheet:

d	Bore diameter	35
L	Overall width	96
A	Distance from the housing flange to the front of the inner ring of the bearing	44.5
A1	Total housing width	34
A2	Housing flange thickness	16
H	Housing height	161
J	Distance between the holes	130
N	Diameter of attachment slot	16
kg	Mass	1.27
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.655

Interchange:

OEM	Manufacturer	Comments
UCFL207L3	SNR

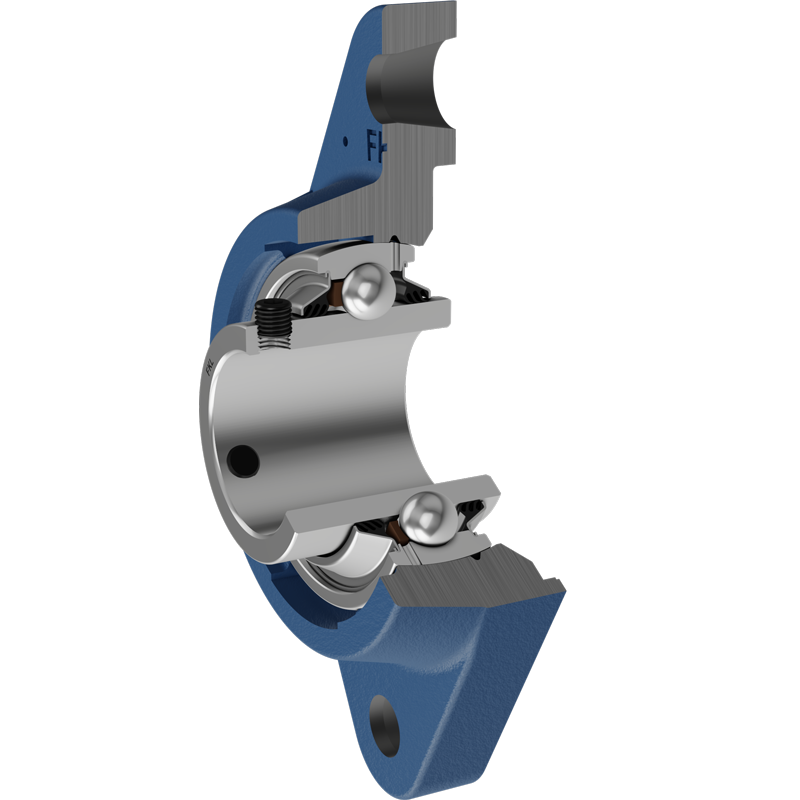

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
