LEN 208 2T FKL

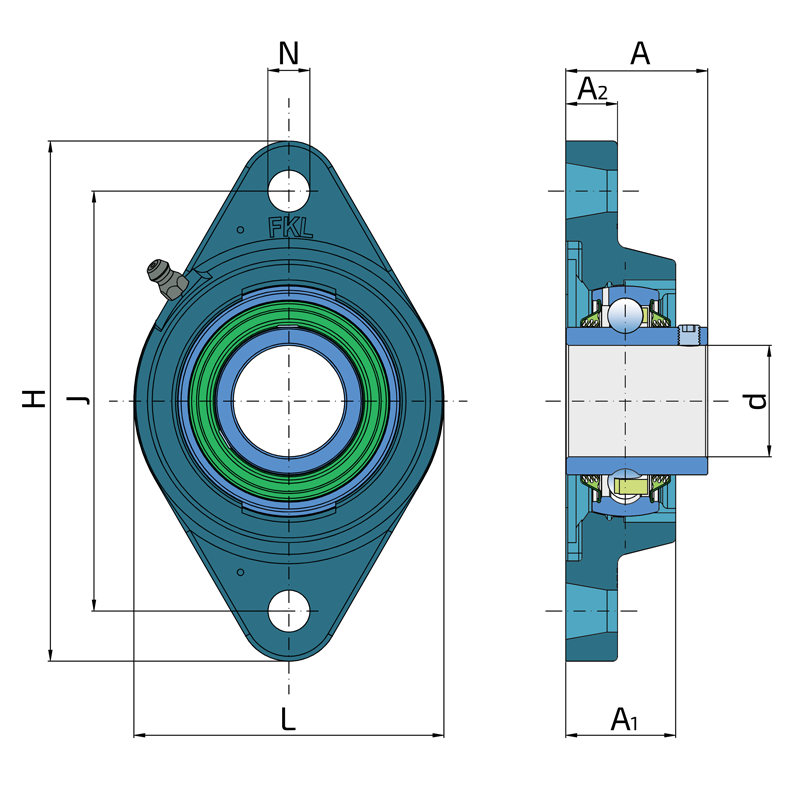

Technical datasheet:

d	Bore diameter	40
L	Overall width	100
A	Distance from the housing flange to the front of the inner ring of the bearing	51.2
A1	Total housing width	36
A2	Housing flange thickness	16
H	Housing height	175
J	Distance between the holes	144
N	Diameter of attachment slot	16
kg	Mass	1.69
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.8

Interchange:

OEM	Manufacturer	Comments
UCFL208L3	SNR

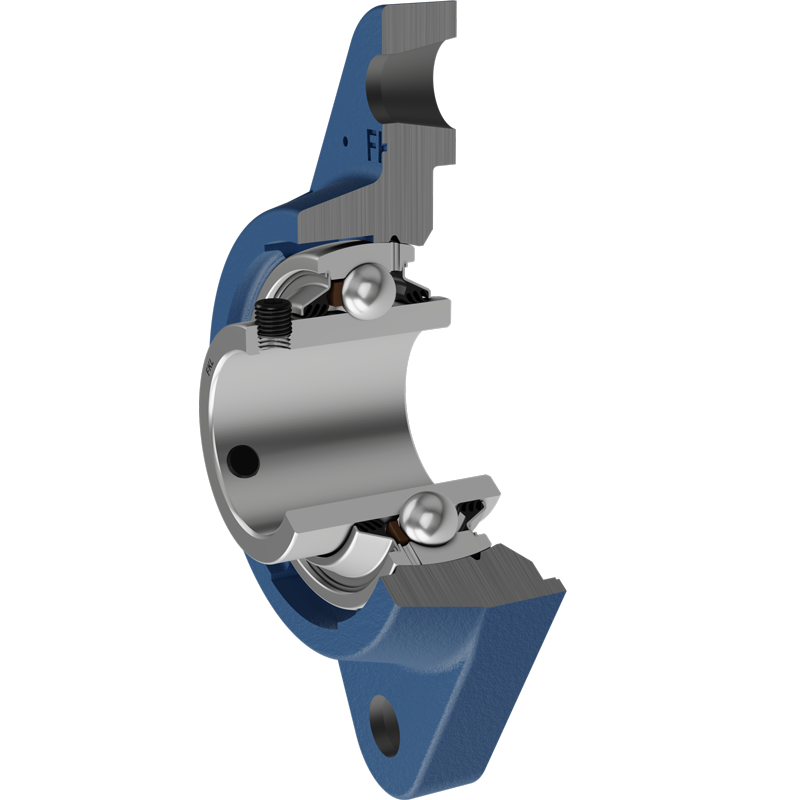

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
