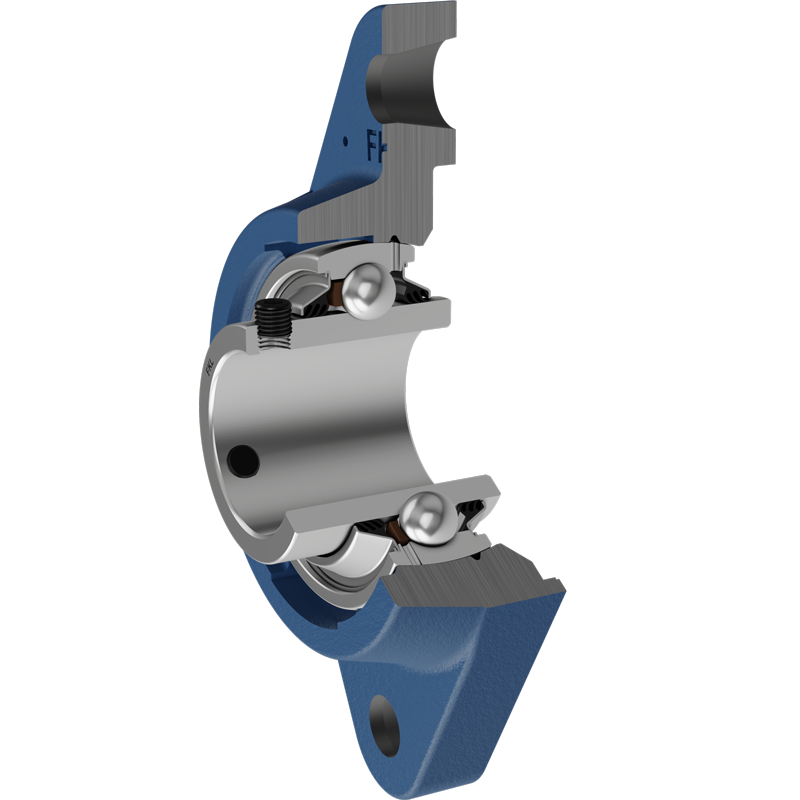

LEN 209 2T FKL

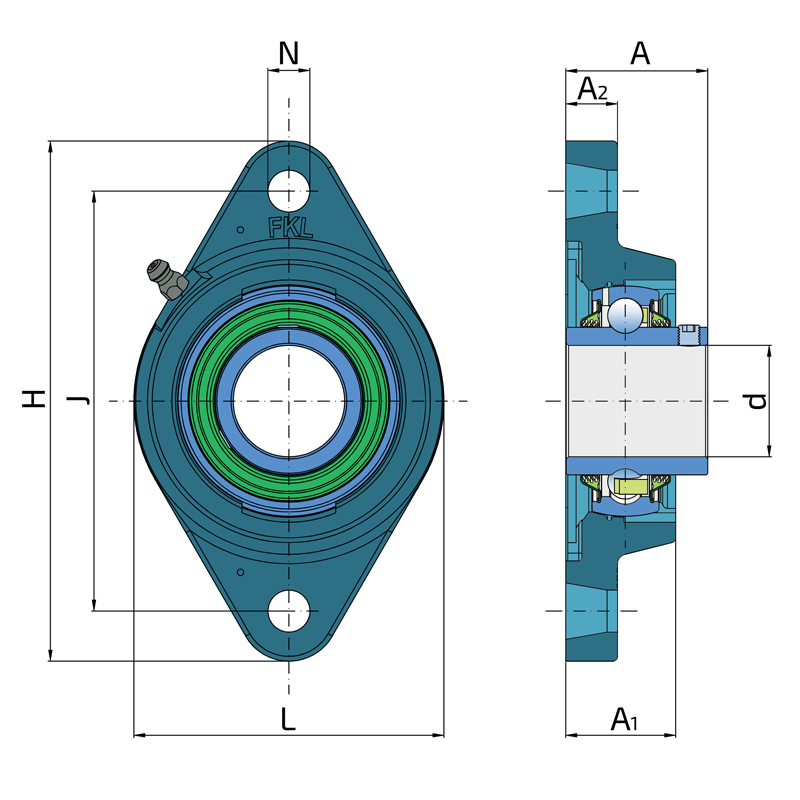

Technical datasheet:

d	Bore diameter	45
L	Overall width	108
A	Distance from the housing flange to the front of the inner ring of the bearing	52.2
A1	Total housing width	38
A2	Housing flange thickness	18
H	Housing height	188
J	Distance between the holes	148
N	Diameter of attachment slot	19
kg	Mass	1.84
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.915

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
