LEP 208 2F FKL

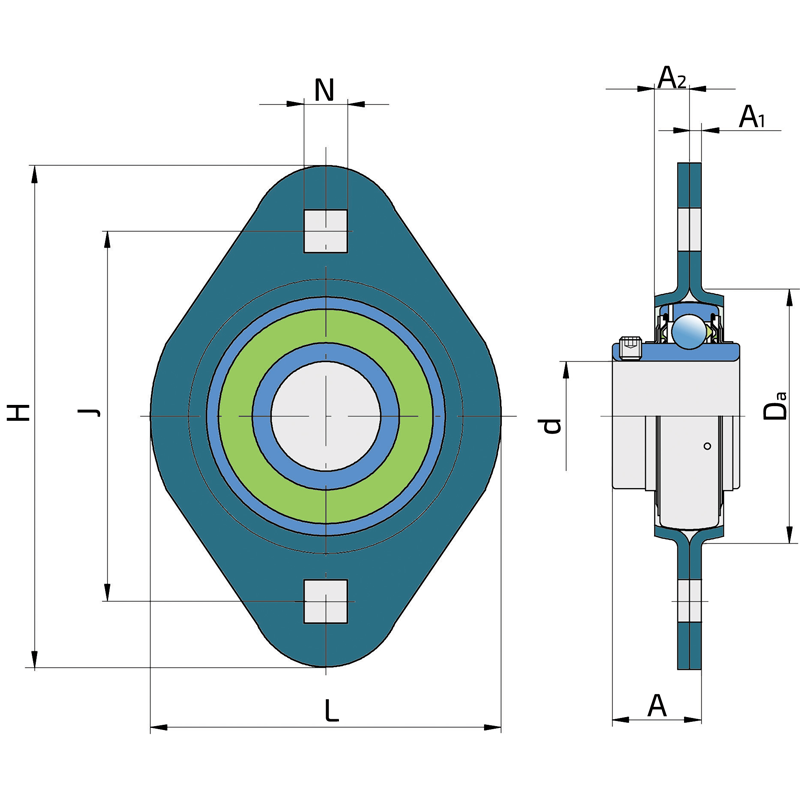

Technical datasheet:

d	Bore diameter	40
Da	Centering diameter	91
L	Overall width	100
A	Distance from the housing flange to the front of the inner ring of the bearing	33.7
A1	Housing flange thickness	3.5
A2	Height of the housing	11
H	Housing height	148
J	Distance between the holes	119
N	Sqare hole dimension	13.5
Fr	Radial load	7.5
Fa	Axial load	3.7
kg	Mass	0.94
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.8

Interchange:

OEM	Manufacturer	Comments
PFT40TF	SKF

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
