LES 214 2F FKL

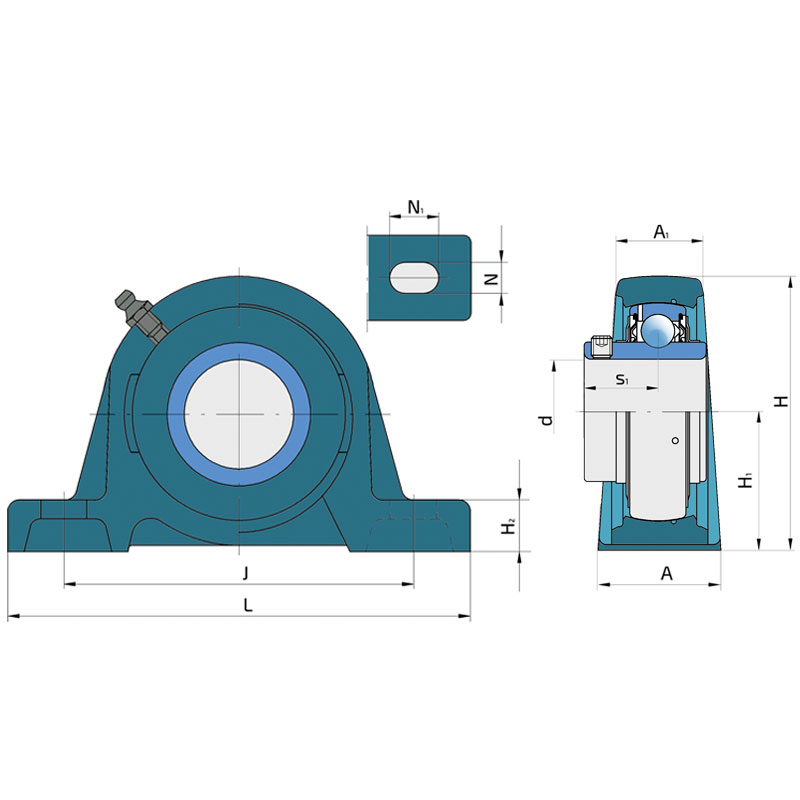

Technical datasheet:

d	Bore diameter	70
L	Overall length	266
A	Housing contact surface width	72
A1	Width of the top of the housing	46
H	Housing height	155
H1	Distance from the contact surface to the bearing axis	79.4
H2	Housing foot thickness	27
Jmin	Min. distance between the holes	205
Jmax	Max. distance between the holes	215
N	Height of attachment slot	25
N1	Length attachment end	30
s1	Distance from locking device side face to raceway centre	39.7
kg	Mass	6.6
Cdyn	Dynamic load rating	62.4
Co	Static load rating	44
Pu	Fatigue load limit	1.86

Interchange:

OEM	Manufacturer	Comments
RASEY70	INA
SYJ70TF	SKF
UCP214	NTN
UCP214	NSK
UCP214	FAG
UCP214	SNR
UCPE214	SNR

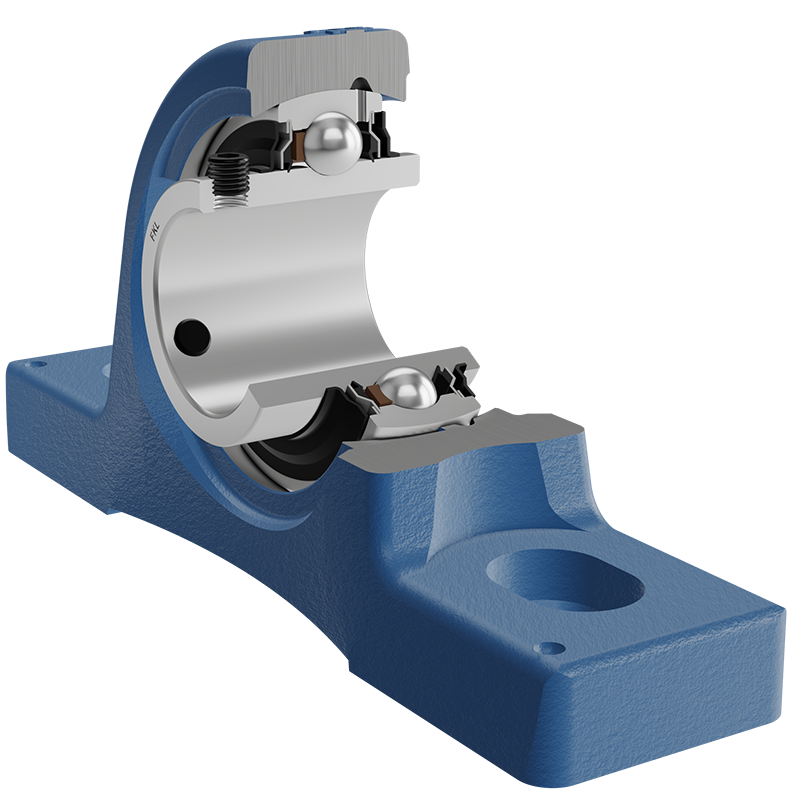

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
