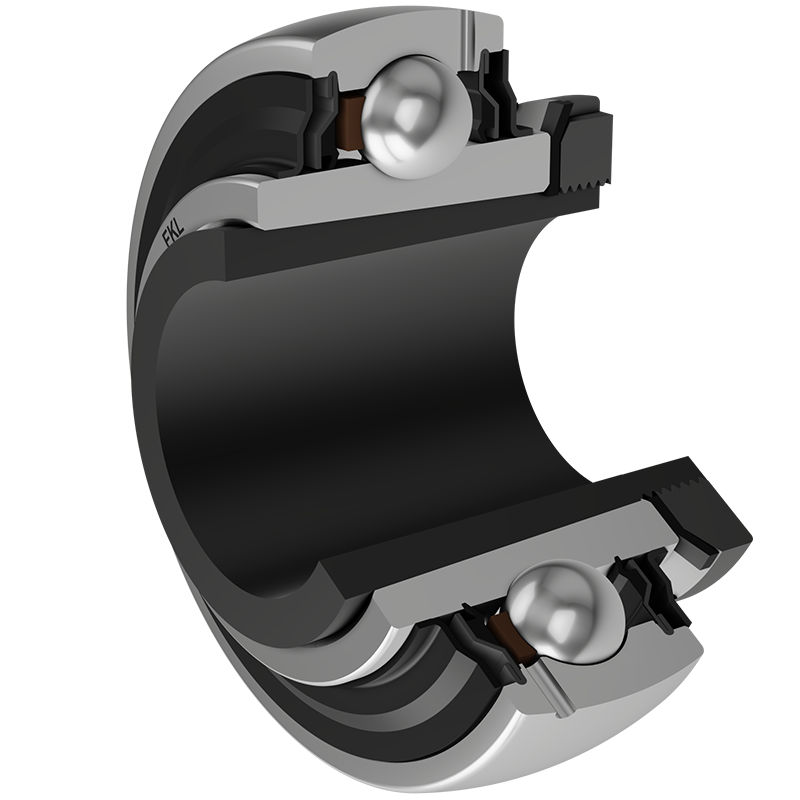

LK 205 2F+H 2305 FKL

Technical datasheet:

d	Bore diameter	25
D	Outside diameter	52
B	Width inner ring	24
C	Width outer ring	15
d1	Outer diameter inner ring	33.6
E	Distance from raceway centre to the hole for lubrication	4.3
d2	Bore diameter-adapter sleeve	20
L	Width adapter sleeve	35
W	KM nut outside diameter	38
Y	KM nut width	8
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.232
kg	Mass	0.22

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
