LKV 208 2F + H2308 FKL

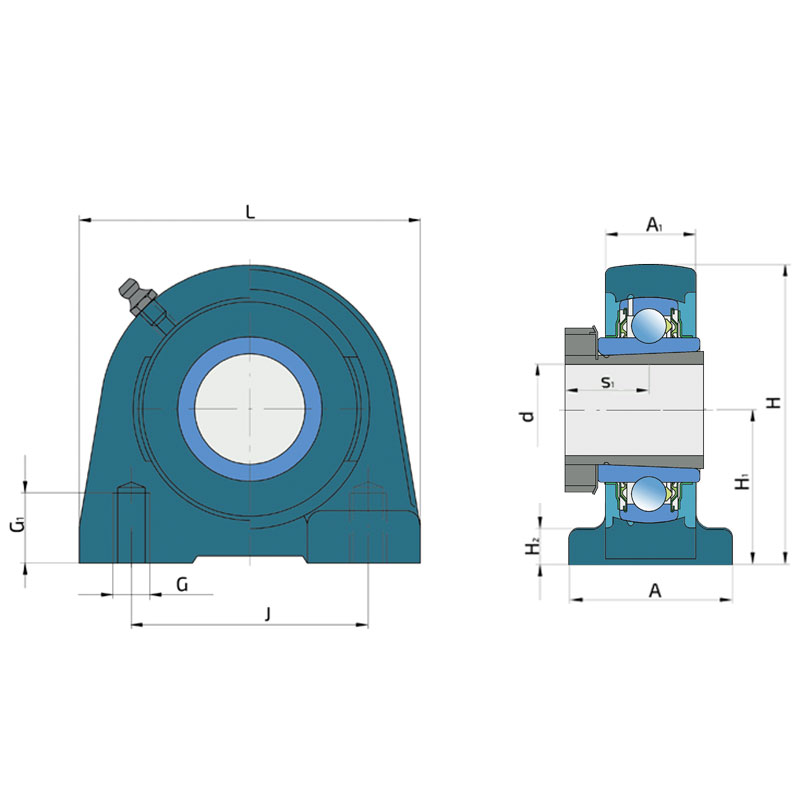

Technical datasheet:

d	Bore diameter	35
L	Overall length	116
A	Housing contact surface width	54
A1	Width of the top of the housing	31.5
H	Housing height	100
H1	Distance from the contact surface to the bearing axis	12
H2	Housing foot thickness	49.2
J	Pitch circle diameter	84
G	Thread	M14
G1	Thread length	20
s1	Distance from locking device side face to raceway centre	27
kg	Mass	1.76
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.56

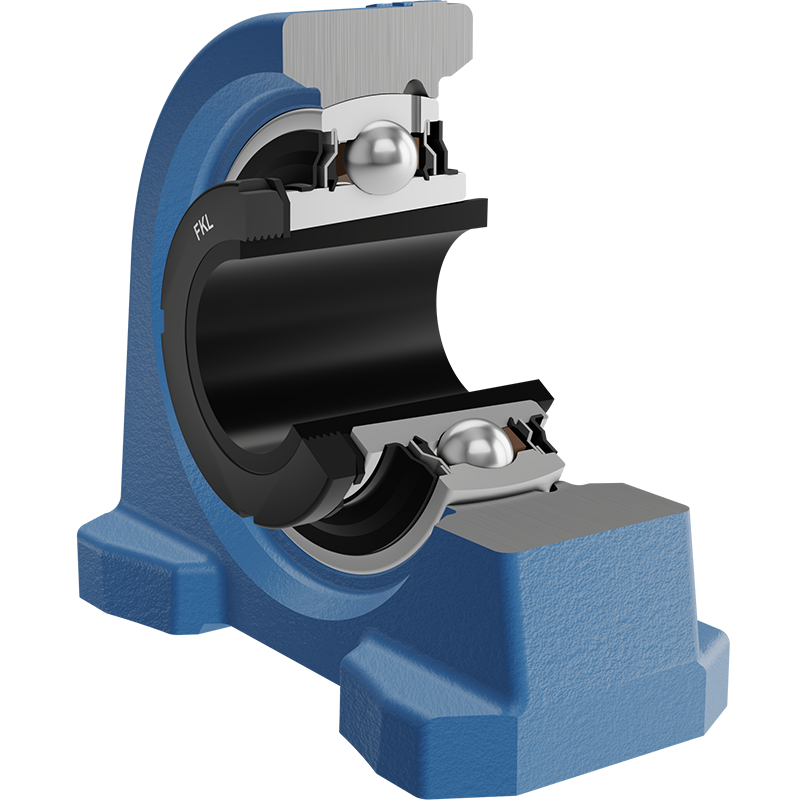

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
