LS 205 2T FKL

Technical datasheet:

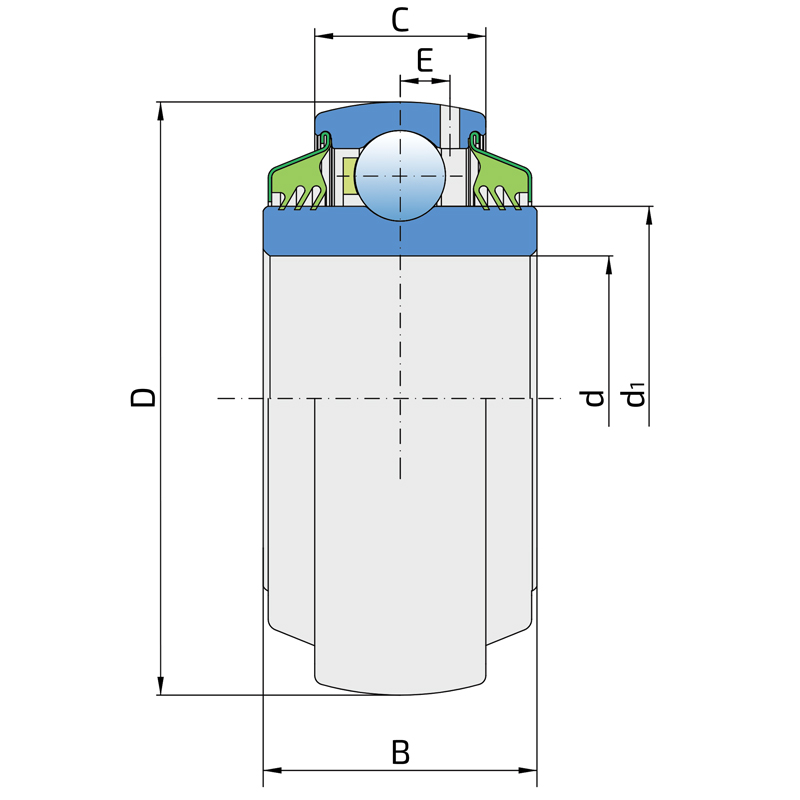

d	Bore diameter	25
D	Outside diameter	52
B	Width inner ring	24
C	Width outer ring	15
d1	Outer diameter inner ring	33.6
E	Distance from raceway centre to the hole for lubrication	4.3
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.335
kg	Mass	0.14

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
