LS 205 FS FKL

Net price:

11.442 €/pcs

Main warehouse:

On stock

2 pcs

Product number:

LS 205 FS

Brand:

FKL

Product name:

bearing

Sizes:

25X52X25/15

Catalog #2: LS205FS.pdf

Inquiry Subscribe

Product details from catalogue

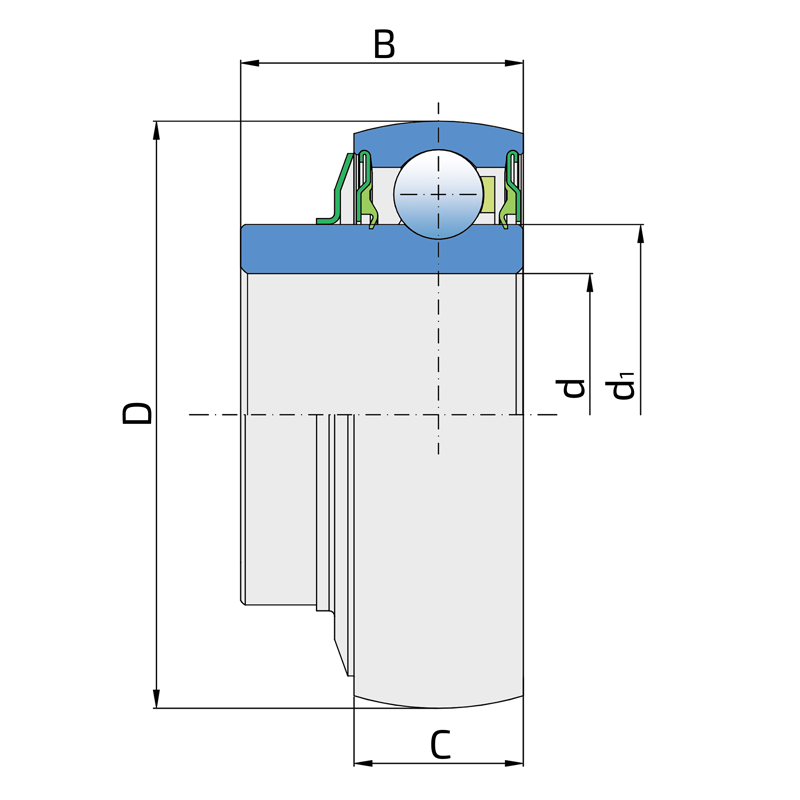

Drawings:

LS 205 FS FKL

Technical datasheet:

d	Bore diameter	25
D	Outside diameter	52
B	Width inner ring	25
C	Width outer ring	15
d1	Outer diameter inner ring	33.7
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.328

Interchange:

OEM	Manufacturer	Comments
RCJ 25x400x43	INA

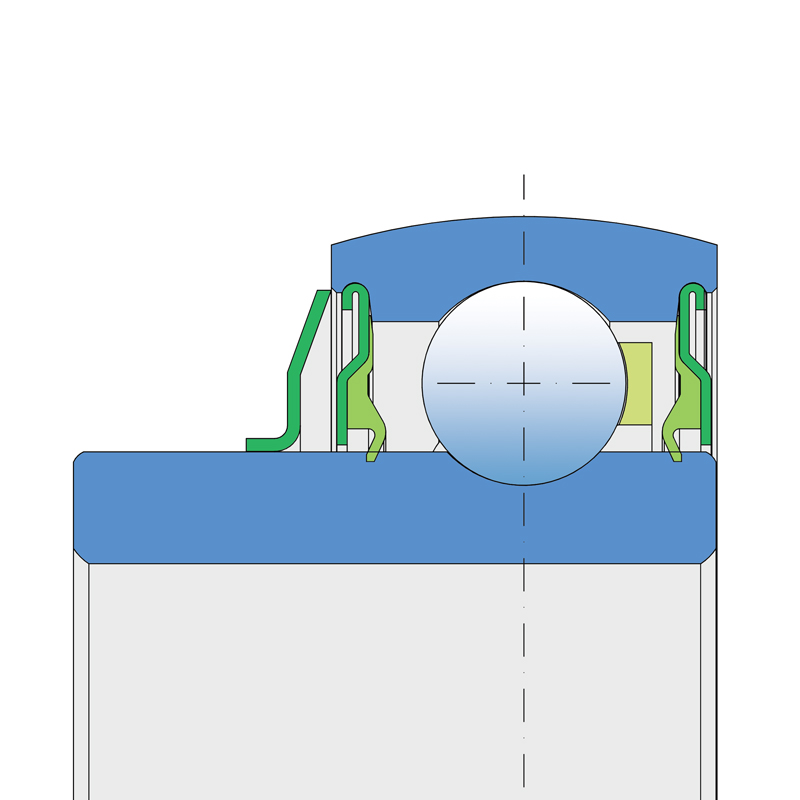

F SEAL / S SEAL (FS)

Sealing F SEAL / S SEAL (FS) S seal on the base side and F seal on the front side which is exposed to contaminants. The F seal on the front side protects the bearing from contaminant penetration.
