LS 206 2T FKL

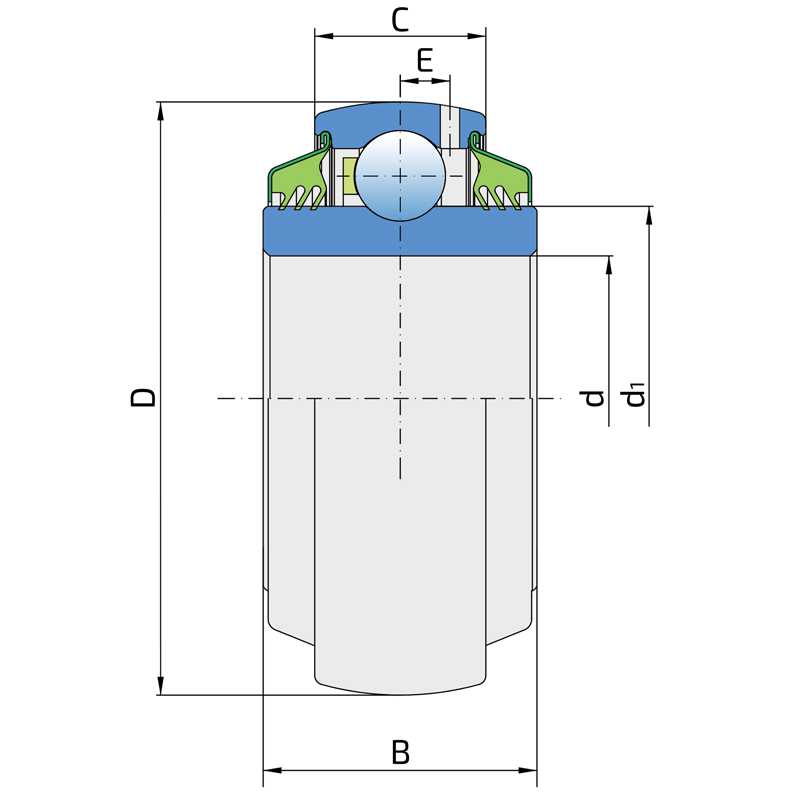

Technical datasheet:

d	Bore diameter	30
D	Outside diameter	62
B	Width inner ring	28
C	Width outer ring	18
d1	Outer diameter inner ring	39.7
E	Distance from raceway centre to the hole for lubrication	5.1
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.475
kg	Mass	0.23

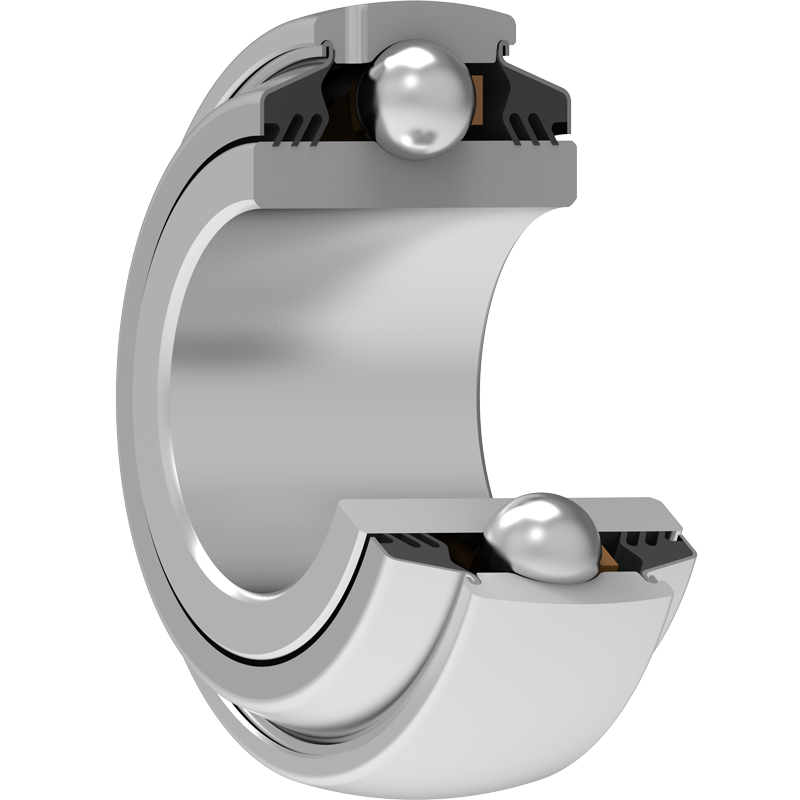

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
