LS 207 2T FKL

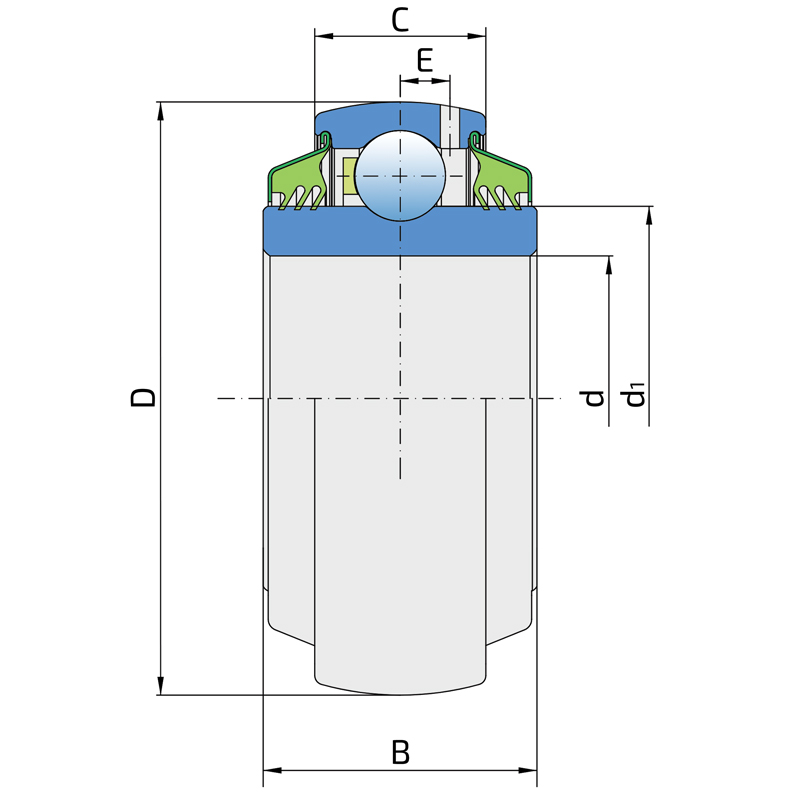

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	72
B	Width inner ring	30.5
C	Width outer ring	19
d1	Outer diameter inner ring	46.1
E	Distance from raceway centre to the hole for lubrication	5.6
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.655
kg	Mass	0.31

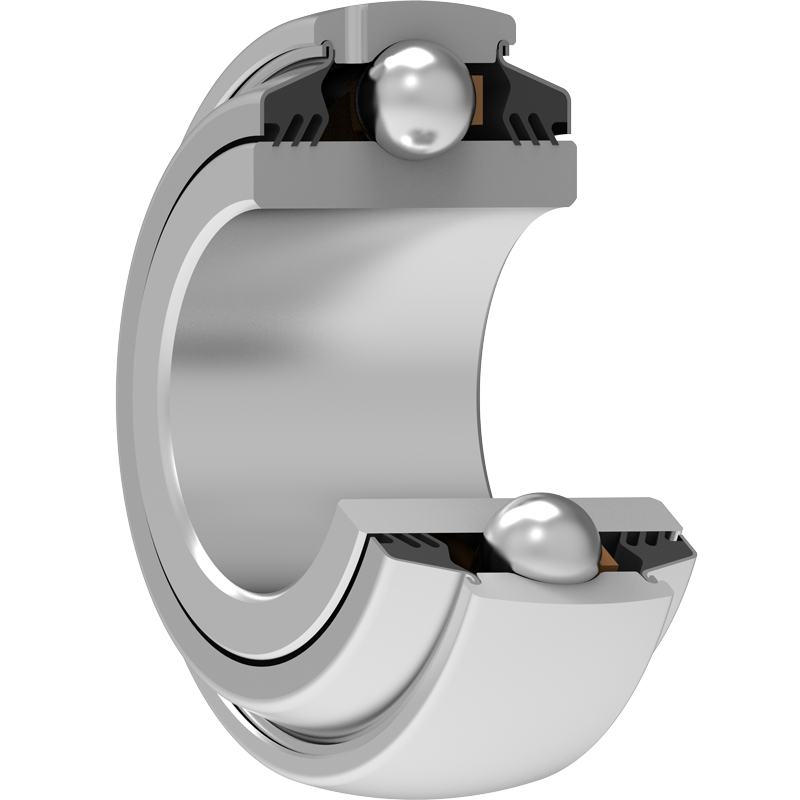

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
