LS 207 TBS FKL

Net price:

15.821 €/pcs

Main warehouse:

On stock

10 pcs

Product number:

LS 207 TBS

Brand:

FKL

Product name:

bearing

Sizes:

35X72X19/28,3

Replacements:

PN 00023 F-232812-0200 UC 207 X1

Inquiry Subscribe

Product details from catalogue

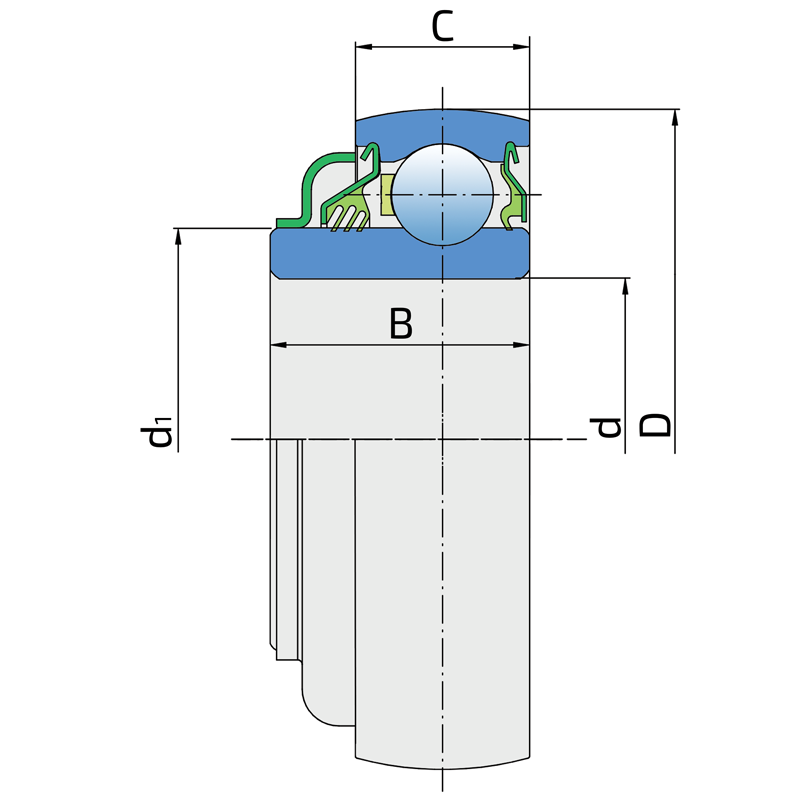

Drawings:

LS 207 TBS FKL

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	72
B	Width inner ring	28.3
C	Width outer ring	19
d1	Outer diameter inner ring	46.1
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.643

Interchange:

OEM	Manufacturer	Comments
RCJ35x118x39.9	INA

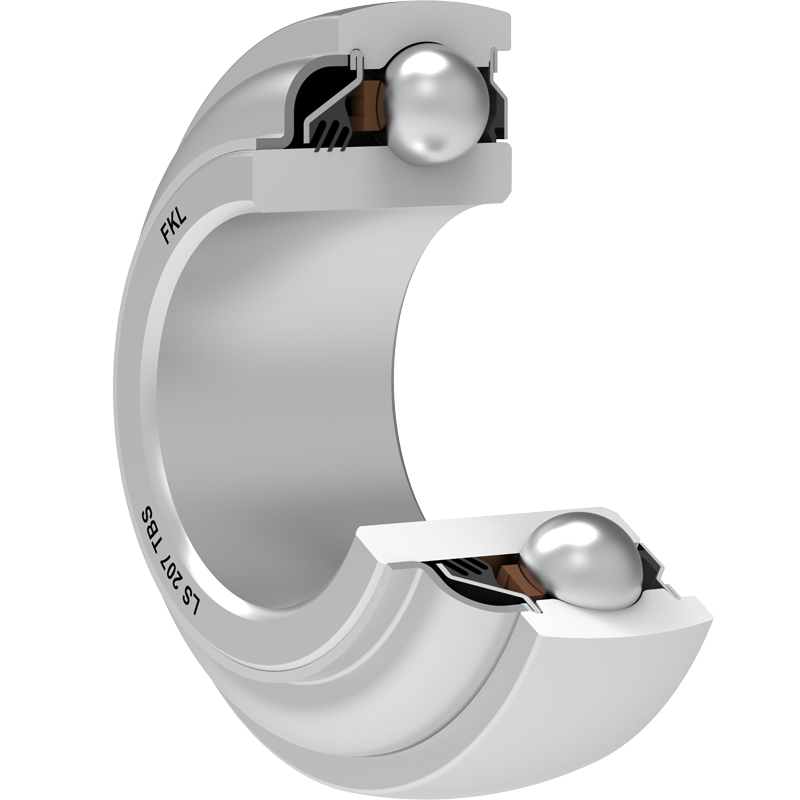

S SEAL / T SEAL+METAL FLINGER RING

S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.
