LS 208 2T FKL

Technical datasheet:

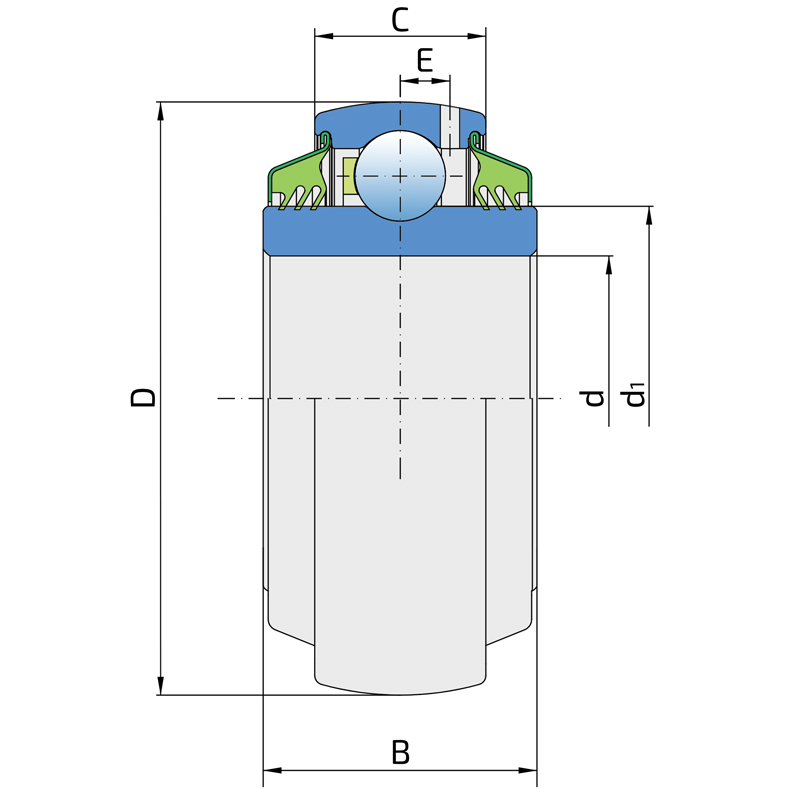

d	Bore diameter	40
D	Outside diameter	80
B	Width inner ring	33.9
C	Width outer ring	21
d1	Outer diameter inner ring	51.8
E	Distance from raceway centre to the hole for lubrication	6.1
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.8
kg	Mass	0.43

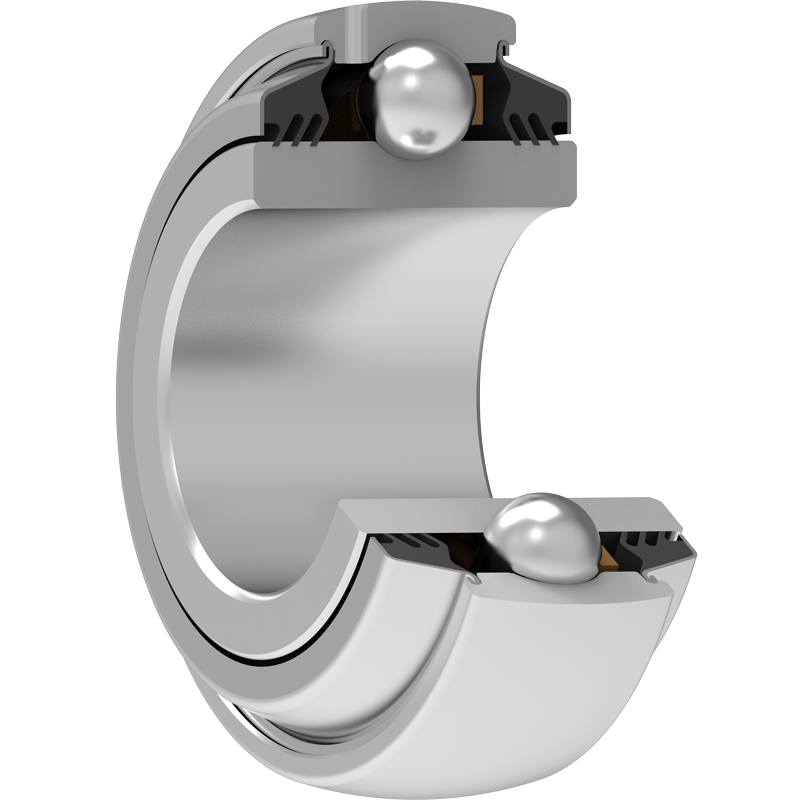

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
