LS 209 2T FKL

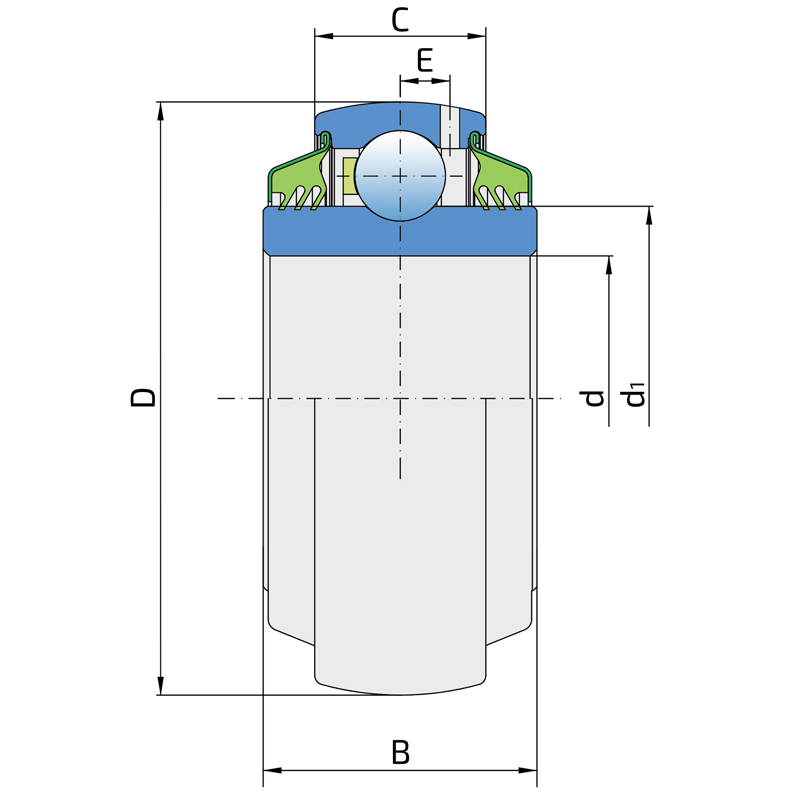

Technical datasheet:

d	Bore diameter	45
D	Outside diameter	85
B	Width inner ring	35
C	Width outer ring	22
d1	Outer diameter inner ring	56.6
E	Distance from raceway centre to the hole for lubrication	6.1
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.915
kg	Mass	0.53

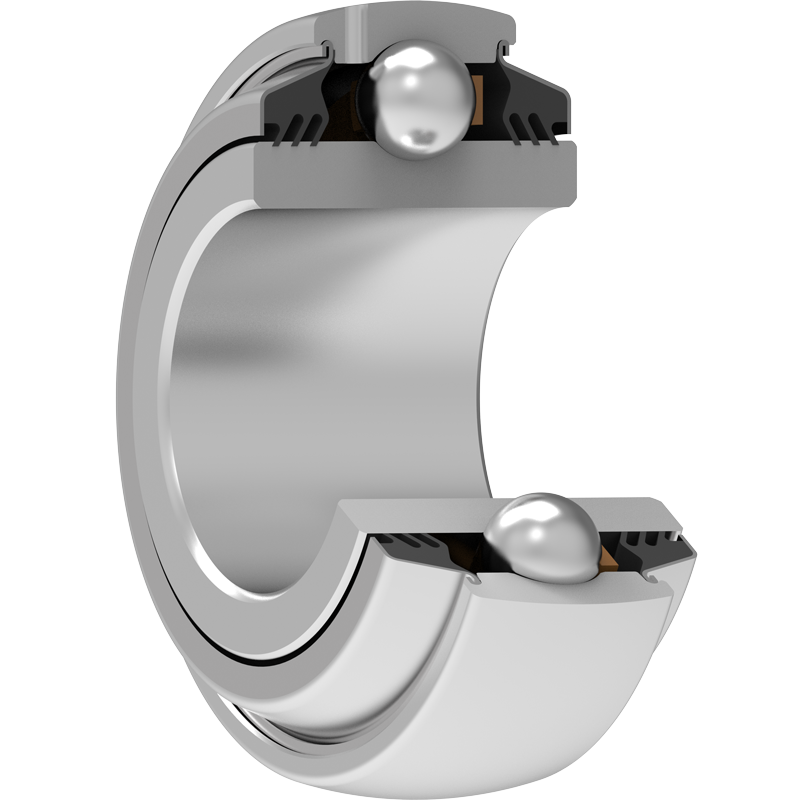

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
